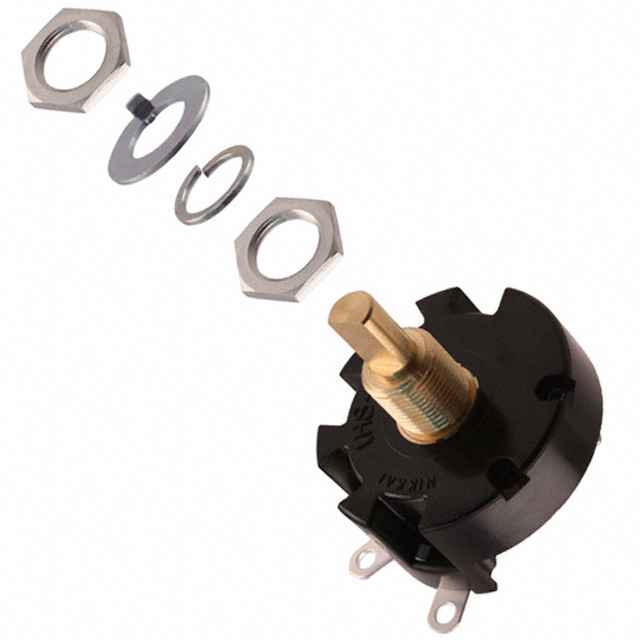

HS13X-D

Obsolete

NKK Switches

SWITCH ROTARY 2POS 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH ROTARY 2POS 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	HS13X-D

Actuator Length [x]	10 mm
Actuator Type	Flatted
Actuator Type [diameter]	6 mm
Angle of Throw	45 °
Circuit per Deck	SPDT
Contact Material	Phosphor Bronze
Contact Timing	Non-Shorting
Current Rating (Amps)	6 A, 5 A
Depth Behind Panel	20 mm
Index Stops	Fixed
Number of Decks [custom]	1
Number of Poles per Deck	1
Number of Positions	2
Panel Cutout Dimensions [diameter]	10.3 mm
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Number of Decks [custom]	Contact Material	Number of Poles per Deck	Depth Behind Panel	Contact Timing	Number of Positions	Voltage Rating - AC	Voltage Rating - DC	Index Stops	Angle of Throw	Circuit per Deck	Panel Cutout Dimensions [diameter]	Actuator Type	Actuator Type [diameter]	Termination Style	Current Rating (Amps)	Actuator Length [x]
NKK Switches HS13X-D-AT431
NKK Switches HS13X-D	1	Phosphor Bronze	1	20 mm	Non-Shorting	2	125 V	30 V	Fixed	45 °	SPDT	10.3 mm	Flatted	6 mm	Solder Lug	5 A 6 A	10 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rotary Switch 2 Position SPDT 6A (AC), 5A (DC) 125 VAC Panel Mount
