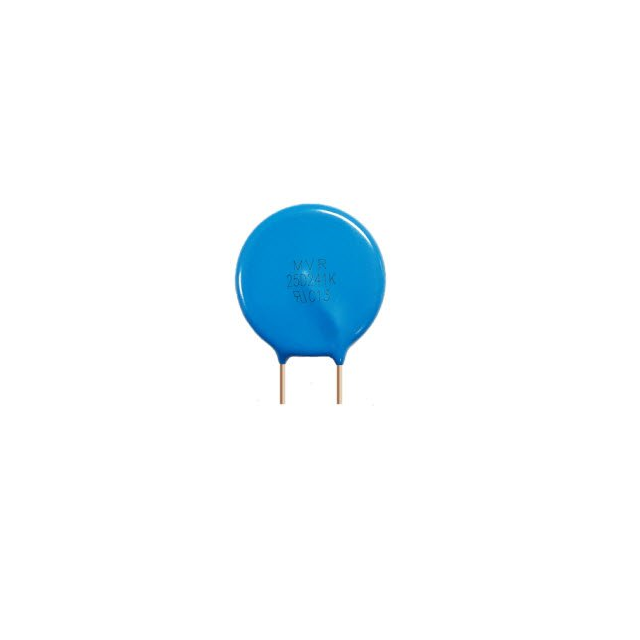

MVR07D431K-S

Active

Meritek

VARISTOR 430V 1750A DISC 7MM HIG

Search across all available documentation for this part.

Active

Meritek

VARISTOR 430V 1750A DISC 7MM HIG

Technical Specifications

Parameters and characteristics for this part

Part	Energy	Package / Case [diameter]	Package / Case	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Circuits	Capacitance @ Frequency	Varistor Voltage (Typ)	Varistor Voltage (Min) [Min]	Varistor Voltage (Max) [Max]	Current - Surge	Maximum DC Volts [Max]	Maximum AC Volts [Max]	Maximum AC Volts	Features
Meritek MVR07D431K	28 J	7 mm	Disc	Through Hole	-40 °C	105 ░C	1	115 pF	430 V	387 V	473 V	1.2 kA	350 V	275 V
Meritek MVR07D470K	2.5 J	7 mm	Disc	Through Hole	-40 °C	105 ░C	1	1100 pF	47 V	42 V	52 V	250 A	38 V	30 V
Meritek MVR07D621K	33 J	7 mm	Disc	Through Hole	-40 °C	105 ░C	1	80 pF	620 V	558 V		1.2 kA	505 V		385 V
Meritek MVR07D390K	2.1 J	7 mm	Disc	Through Hole	-40 °C	105 ░C	1	1300 pF	39 V	35 V	43 V	250 A	31 V	25 V
Meritek MVR07D431K-S	40 J	7 mm	Disc	Through Hole	-40 °C	105 ░C	1	115 pF	430 V	387 V	473 V	1.75 kA	350 V	275 V		High Surge
Meritek MVR07D391K	25 J	7 mm	Disc	Through Hole	-40 °C	105 ░C	1	130 pF	390 V	351 V	429 V	1.2 kA	320 V	250 V
Meritek MVR07D180K	0.9 J	7 mm	Disc	Through Hole	-40 °C	105 ░C	1	2800 pF	18 V	15 V	21.6 V	250 A	14 V	11 V
Meritek MVR07D241K	15 J	7 mm	Disc	Through Hole	-40 °C	105 ░C	1	210 pF	240 V	216 V	264 V	1.2 kA	200 V	150 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

430 V 1.75 kA Varistor 1 Circuit Through Hole Disc 7mm
