DF18C-20DS-0.4V(81)

Obsolete

Hirose Electric USA, Inc.

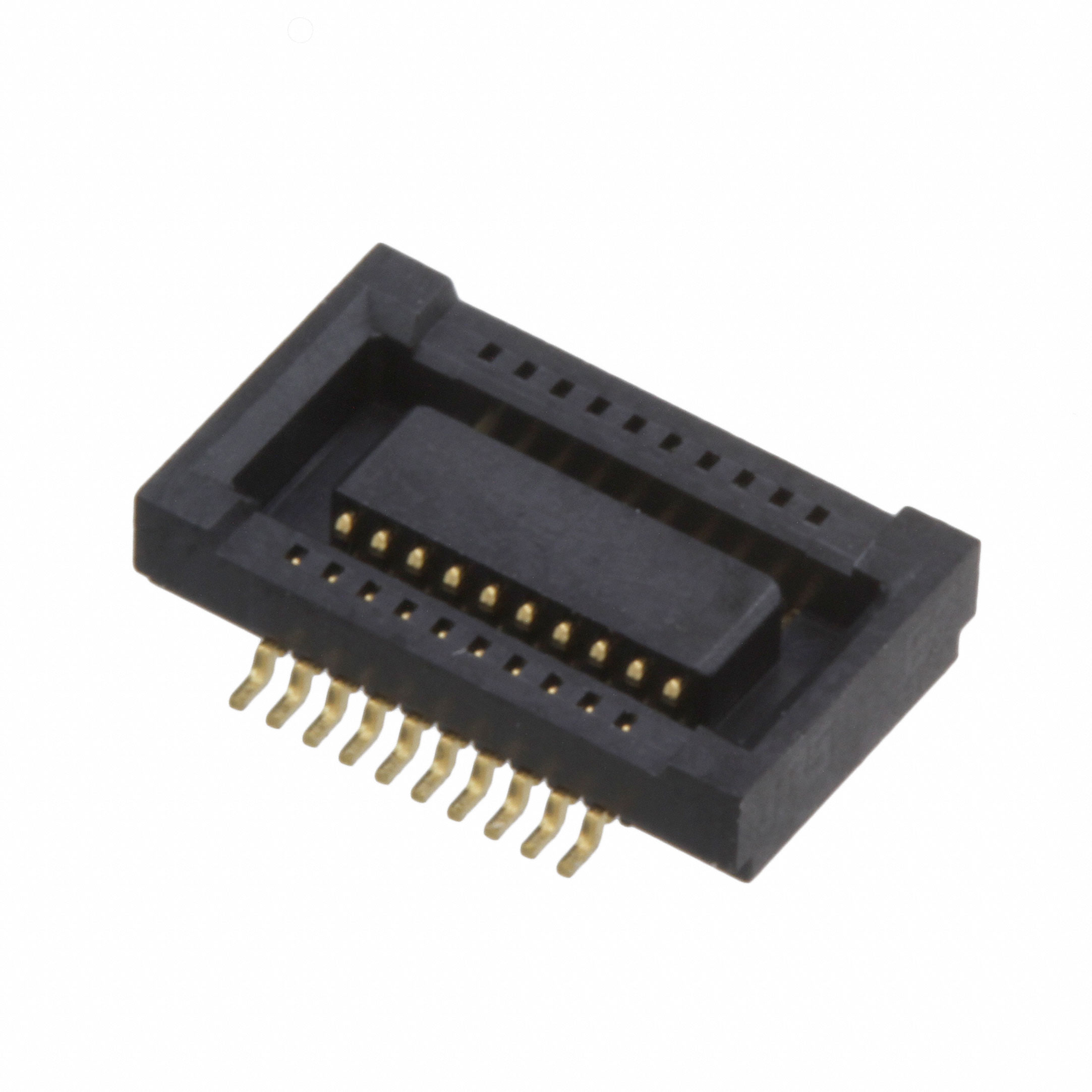

CARD EDGE CONNECTOR, 20 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.016 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BLACK INSULATOR, RECEPTACLE,

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CARD EDGE CONNECTOR, 20 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.016 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BLACK INSULATOR, RECEPTACLE,

Technical Specifications

Parameters and characteristics for this part

Specification	DF18C-20DS-0.4V(81)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Height Above Board [z]	0.057 in
Height Above Board [z]	1.45 mm
Mated Stacking Heights	1.5 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Height Above Board [z]	Height Above Board [z]	Mounting Type	Number of Positions	Contact Finish	Number of Rows	Mated Stacking Heights	Connector Type	Pitch [x]	Pitch [x]
Hirose Electric USA, Inc. DF18C-60DP-0.4V(81)	0.046 in	1.16 mm	Surface Mount	60	Gold	2	1.5 mm	Outer Shroud Contacts Plug	0.016 in	0.4 mm
Hirose Electric USA, Inc. DF18C-20DS-0.4V(81)	0.057 in	1.45 mm	Surface Mount	20	Gold	2	1.5 mm	Center Strip Contacts Receptacle	0.016 in	0.4 mm
Hirose Electric USA, Inc. DF18C-100DP-0.4V(51)	0.046 in	1.16 mm	Surface Mount	100	Gold	2	1.5 mm	Outer Shroud Contacts Plug	0.016 in	0.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

20 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
