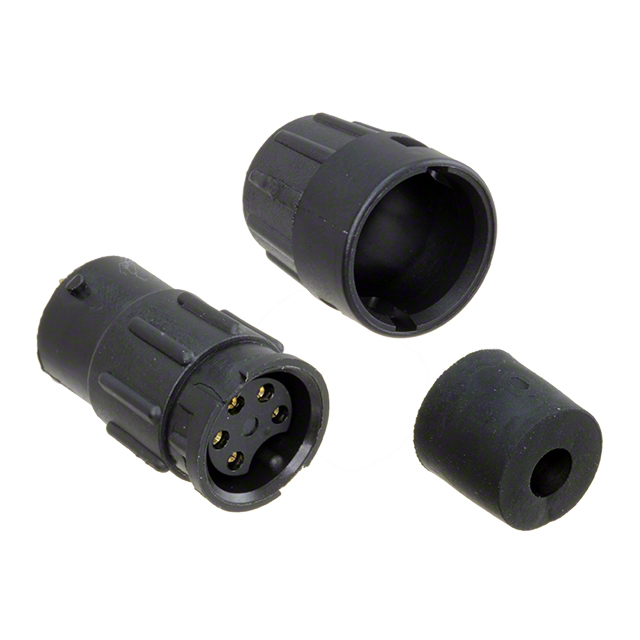

8282-5SG-318
ActiveConxall/Switchcraft
CONN RCPT FMALE 5P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8282-5SG-318
ActiveConxall/Switchcraft
CONN RCPT FMALE 5P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8282-5SG-318 |
|---|---|
| Applications | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Cable Opening [Max] [custom] | 0.2 in |
| Cable Opening [Max] [custom] | 5.08 mm |
| Cable Opening [Min] [custom] | 4.57 mm |
| Cable Opening [Min] [custom] | 0.18 in |
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Ingress Protection | Weathertight |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.58 | |
| 10 | $ 7.60 | |||
| 25 | $ 7.31 | |||
| 50 | $ 7.02 | |||
| 100 | $ 6.86 | |||
Description
General part information
8282-5SG Series
5 Position Circular Connector Receptacle, Female Sockets Solder Cup
