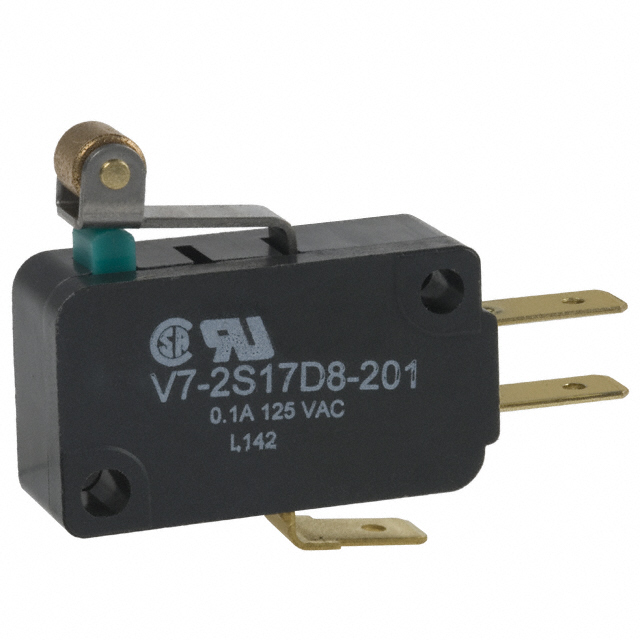

V7-2S17D8-201

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 0.1A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBasic, Toggle, Rocker Switches Range Guide Datasheet +1

V7-2S17D8-201

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 0.1A 125V

Deep-Dive with AI

DocumentsBasic, Toggle, Rocker Switches Range Guide Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V7-2S17D8-201

Actuator Type	Roller, Lever
Circuit	SPDT
Current Rating (Amps)	100 mA
Differential Travel	0.015 in
Differential Travel	0.38 mm
Electrical Life	100000 Cycles
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	90 gf
Operating Position	0.812 in
Operating Position	20.6 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.04 in
Overtravel	1 mm
Pretravel	0.047 in
Pretravel	1.2 mm
Release Force	7 gf
Switch Function	On-Mom
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

V7-2 Series

Part	Operating Force	Mounting Type	Operating Position	Operating Position	Switch Function	Release Force	Electrical Life	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Actuator Type	Circuit	Pretravel	Pretravel	Overtravel	Overtravel	Voltage Rating - AC	Current Rating (Amps)	Differential Travel	Differential Travel	Voltage Rating - DC
Honeywell Sensing and Productivity Solutions V7-2A27D84
Honeywell Sensing and Productivity Solutions V7-2S17D8-022	41 gf	Chassis Mount	15.3 mm	0.602 "	On-Mom	3 gf	100000 Cycles	Quick Connect - 0.187" (4.7mm)	85 °C	-40 °C	10000000 Cycles	Lever Straight	SPDT	0.128 in	3.25 mm	1.8 mm	0.07 in	125 V	100 mA	0.028 in	0.7 mm
Honeywell Sensing and Productivity Solutions V7-2A27D84-000-1
Honeywell Sensing and Productivity Solutions V7-2B29E9-000-1
Honeywell Sensing and Productivity Solutions V7-2S17D8-201	90 gf	Chassis Mount	20.6 mm	0.812 in	On-Mom	7 gf	100000 Cycles	Quick Connect - 0.187" (4.7mm)	85 °C	-40 °C	10000000 Cycles	Lever Roller	SPDT	0.047 in	1.2 mm	1 mm	0.04 in	125 V	100 mA	0.015 in	0.38 mm
Honeywell Sensing and Productivity Solutions V7-2A18D8-207
Honeywell Sensing and Productivity Solutions V7-2B29D8-384	76 gf	Chassis Mount	15.3 mm	0.602 "	Off-Mom	6 gf	100000 Cycles	Quick Connect - 0.187" (4.7mm)	85 °C	-40 °C	10000000 Cycles	Formed Lever	SPST-NO	0.067 in	1.7 mm	1 mm	0.039 in	125 V	11 A 500 mA	0.015 in	0.38 mm	125 VDC
Honeywell Sensing and Productivity Solutions V7-2A1AD8C9-000-1
Honeywell Sensing and Productivity Solutions V7-2A27D8-000-5	75 gf	Chassis Mount	14.7 mm	0.579 in	Off-Mom			Quick Connect - 0.187" (4.7mm)	85 °C	-40 °C	10000000 Cycles	Round (Pin Plunger)	SPST-NO	0.047 in	1.2 mm	1.27 mm	0.05 in	125 V	5 A	0.01 in	0.25 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 5.27

Description

General part information

V7-2 Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

Basic, Toggle, Rocker Switches Range Guide

Datasheet

V7 Series Basic Switches Catalog

Datasheet
