SCFF04210

Active

AMPHENOL PCD

TERM BLOCK PLUG 4POS STR 5.08MM

Search across all available documentation for this part.

Active

AMPHENOL PCD

TERM BLOCK PLUG 4POS STR 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	SCFF04210

Color	Black
Contact Material	Phosphor Bronze
Contact Mating Finish	Tin
Housing Material	Polyphenylene Oxide (PPO)
Insulation Height	0.55 in
Insulation Height	13.97 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	4
Operating Temperature	105 C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	4
Termination Style	Screwless - Spring Cage, Tension Clamp
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Strip Length	6.35 mm

Part	Mounting Type	Termination Style	Color	Pitch [x]	Pitch [x]	Number of Levels	Type	Operating Temperature	Contact Mating Finish	Contact Material	Wire Strip Length	Housing Material	Voltage - UL	Material Flammability Rating	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Positions Per Level	Number of Positions	Insulation Height	Insulation Height
AMPHENOL PCD SCFF04210	Free Hanging (In-Line)	Screwless - Spring Cage Tension Clamp	Black	0.2 in	5.08 mm	1	Plug Female Sockets	105 C	Tin	Phosphor Bronze	6.35 mm	Polyphenylene Oxide (PPO)	300 V	UL94 V-0	28 AWG	12 AWG	4	4	0.55 in	13.97 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 2.05

General part information

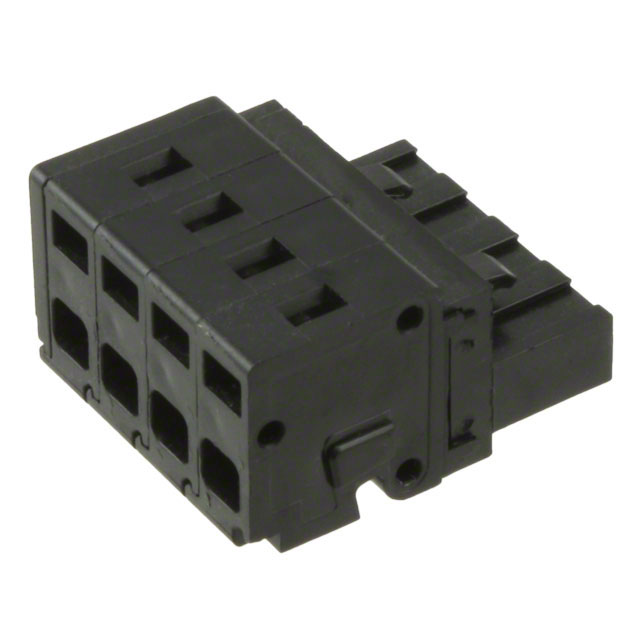

4 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
