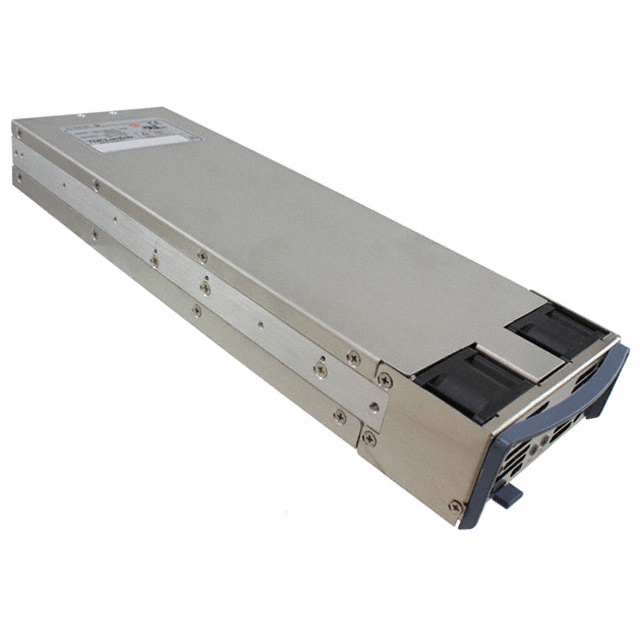

HFE2500-24/S

Active

TDK-LAMBDA

AC/DC CONVERTER 24V 2500W

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC CONVERTER 24V 2500W

Technical Specifications

Parameters and characteristics for this part

Specification	HFE2500-24/S

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	104 A
Efficiency	92 %
Features	Remote Sense, Adjustable Output, Remote On/Off, Universal Input, Load Sharing
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	2500 W
Size / Dimension [x]	12.8 ", 325.1 mm
Size / Dimension [y]	4.21 ", 106.9 mm
Size / Dimension [z]	1.61 ", 40.9 mm
Type	Front End
Voltage - Input [Max]	265 VAC
Voltage - Input [Min]	85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Rack Mount Power Supplies 2400W 12V 200A 115-230VAC RackMount

Part	For Use With/Related Products	Accessory Type	Type	Voltage - Output 1	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Isolation	Features	Approval Agency	Mounting Type	Applications	Power (Watts)	Number of Outputs
TDK-LAMBDA HFE2500-S1U	HFE2500 Series Power Supplies	Power Shelf
TDK-LAMBDA HFE2500-24/S			Front End	24 V	92 %	-10 °C	70 °C	104 A	12.8 " 325.1 mm	1.61 " 40.9 mm	4.21 " 106.9 mm	85 VAC	265 VAC	3000 V	Adjustable Output Load Sharing Remote On/Off Remote Sense Universal Input	CE	Rack Mount	ITE (Commercial)	2500 W	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1183.72
