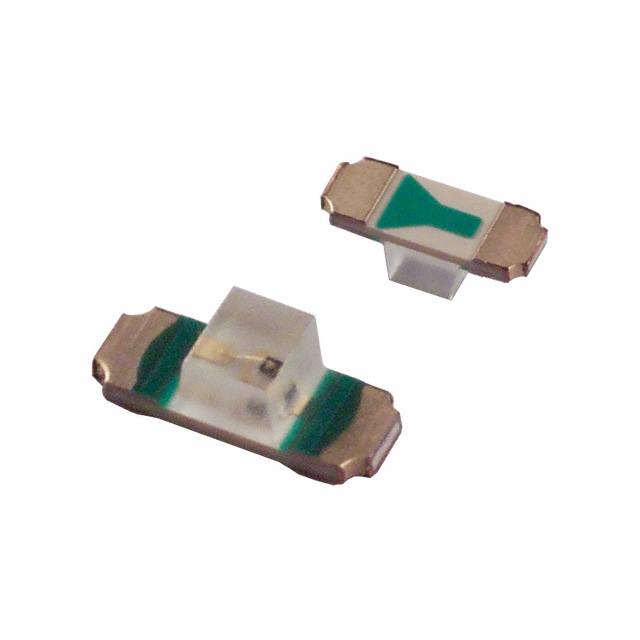

SML813WBC8W1
ObsoleteRohm Semiconductor
LED UNI-COLOR WHITE X=0.3/Y=0.3 CHIP LED 2-PIN SMD T/R
Deep-Dive with AI
Search across all available documentation for this part.
SML813WBC8W1
ObsoleteRohm Semiconductor
LED UNI-COLOR WHITE X=0.3/Y=0.3 CHIP LED 2-PIN SMD T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SML813WBC8W1 |
|---|---|
| Color | Cool, White |
| Configuration | Standard |
| Current - Test | 5 mA |
| Height (Max) [Max] | 1.15 mm |
| Lens Color | White |
| Lens Size [x] | 1.2 mm |
| Lens Size [y] | 1.25 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 45 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 3412 Metric |
| Package / Case | 1305 |
| Size / Dimension [x] | 3.4 mm |
| Size / Dimension [y] | 1.25 mm |
| Supplier Device Package | 3412(1305) |
| Voltage - Forward (Vf) (Typ) | 2.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SML813 Series
ROHM's chip LED lineup consists of standard type,top-view type, side-view type and reverse-mount type.·Reverse mount available type·Hight-brightness chip LED
