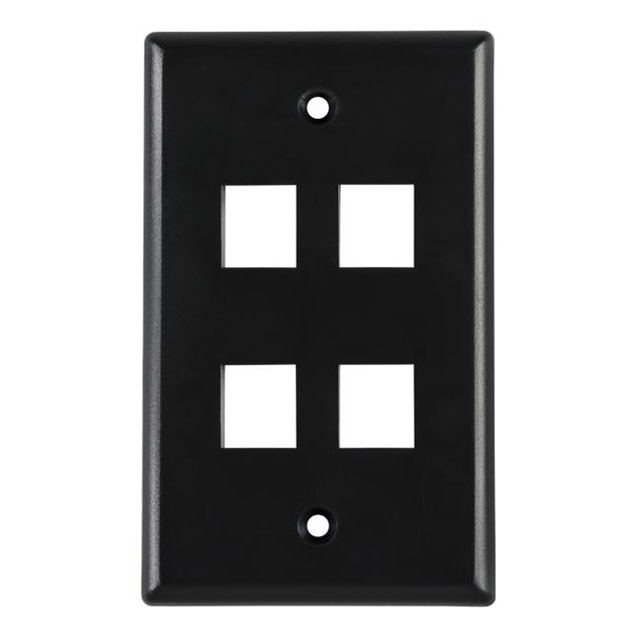

FPQUAD-BK

Obsolete

HELLERMANNTYTON

FACEPLATE SNGL GANG 4PORT BLACK

Search across all available documentation for this part.

Obsolete

HELLERMANNTYTON

FACEPLATE SNGL GANG 4PORT BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	FPQUAD-BK

Color	Black
Depth [z]	5.5 mm
Depth [z]	0.217 in
For Use With/Related Products	Modular Jacks
Length	4.5 in
Length	114.3 mm
Material	Acrylonitrile Butadiene Styrene (ABS)
Material Flammability Rating	UL94 V-0
Number of Ports	4
Port Direction	Straight
Style	Single Gang
Type	Faceplate
Width [y]	2.756 in
Width [y]	70 mm

Part	Depth [z]	Depth [z]	Color	Material	Port Direction	Style	Width [y]	Width [y]	Length	Length	Material Flammability Rating	Number of Ports	For Use With/Related Products	Type
HELLERMANNTYTON FPQUAD-FW	5.5 mm	0.217 in	Off White	Acrylonitrile Butadiene Styrene (ABS)	Straight	Single Gang	2.756 in	70 mm	4.5 in	114.3 mm	UL94 V-0	4	Modular Jacks	Faceplate
HELLERMANNTYTON FPQUAD-BK	5.5 mm	0.217 in	Black	Acrylonitrile Butadiene Styrene (ABS)	Straight	Single Gang	2.756 in	70 mm	4.5 in	114.3 mm	UL94 V-0	4	Modular Jacks	Faceplate
HELLERMANNTYTON FPQUAD-I	5.5 mm	0.217 in	Ivory	Acrylonitrile Butadiene Styrene (ABS)	Straight	Single Gang	2.756 in	70 mm	4.5 in	114.3 mm	UL94 V-0	4	Modular Jacks	Faceplate
HELLERMANNTYTON FPQUAD-SS	5.5 mm	0.217 in	Silver	Stainless Steel	Straight	Single Gang	2.756 in	70 mm	4.5 in	114.3 mm		4	Modular Jacks	Faceplate

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Port Faceplate Black Single Gang
