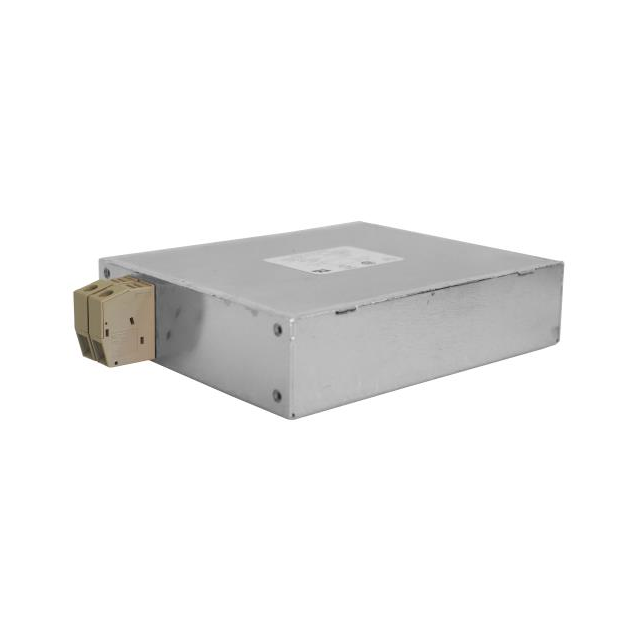

RP600-125-1000-C-F

Active

Astrodyne TDI

LINE FILTER 100VDC/VAC 125A CHAS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RP600-125-1000-C-F

Active

Astrodyne TDI

LINE FILTER 100VDC/VAC 125A CHAS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP600-125-1000-C-F

Applications	General Purpose
Approval Agency	CSA, cURus, SEMKO, ENEC, CE
Configuration	Two Stage
Current	125 A
Filter Type	DC
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Terminal Block
Voltage - Rated AC	100 V
Voltage - Rated DC	100 V

RP600 Series

...

Part	Applications	Voltage - Rated AC	Current	Approval Agency	Operating Temperature [custom]	Voltage - Rated DC	Filter Type	Configuration	Termination Style	Mounting Type
Astrodyne TDI RP600C-15-10-C-F	General Purpose	100 V	15 A	CE CSA cURus ENEC SEMKO	-25 °C 100 °C	100 V	DC	Two Stage	Terminal Block	Chassis Mount
Astrodyne TDI RP600C-80-10-S-B	General Purpose	100 V	80 A	CE CSA cURus ENEC SEMKO	-25 °C 100 °C	100 V	DC	Two Stage	Threaded Post (M6)	Chassis Mount
Astrodyne TDI RP600C-80-4.7-S-B	General Purpose	100 V	80 A	CE CSA cURus ENEC SEMKO	-25 °C 100 °C	100 V	DC	Two Stage	Threaded Post (M6)	Chassis Mount
Astrodyne TDI RP600C-60-10-S-B	General Purpose	100 V	60 A	CE CSA cURus ENEC SEMKO	-25 °C 100 °C	100 V	DC	Two Stage	Threaded Post (M5)	Chassis Mount
Astrodyne TDI RP600C-80-100-C-B	General Purpose	100 V	80 A	CE CSA cURus ENEC SEMKO	-25 °C 100 °C	100 V	DC	Two Stage	Terminal Block	Chassis Mount
Astrodyne TDI RP600-125-1000-C-F	General Purpose	100 V	125 A	CE CSA cURus ENEC SEMKO	-25 °C 100 °C	100 V	DC	Two Stage	Terminal Block	Chassis Mount
Astrodyne TDI RP600C-15-100-C-B	General Purpose	100 V	15 A	CE CSA cURus ENEC SEMKO	-25 °C 100 °C	100 V	DC	Two Stage	Terminal Block	Chassis Mount
Astrodyne TDI RP600C-80-4.7-C-B	General Purpose	100 V	80 A	CE CSA cURus ENEC SEMKO	-25 °C 100 °C	100 V	DC	Two Stage	Terminal Block	Chassis Mount
Astrodyne TDI RP600C-15-100-C-F	General Purpose	100 V	15 A	CE CSA cURus ENEC SEMKO	-25 °C 100 °C	100 V	DC	Two Stage	Terminal Block	Chassis Mount
Astrodyne TDI RP600C-80-22-S-F	General Purpose	100 V	80 A	CE CSA cURus ENEC SEMKO	-25 °C 100 °C	100 V	DC	Two Stage	Threaded Post (M6)	Chassis Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 291.95

Description

General part information

RP600 Series

DC EMC/EMI Line Filter 125 A 100V 100V Two Stage Terminal Block
