0191640008

Active

Molex

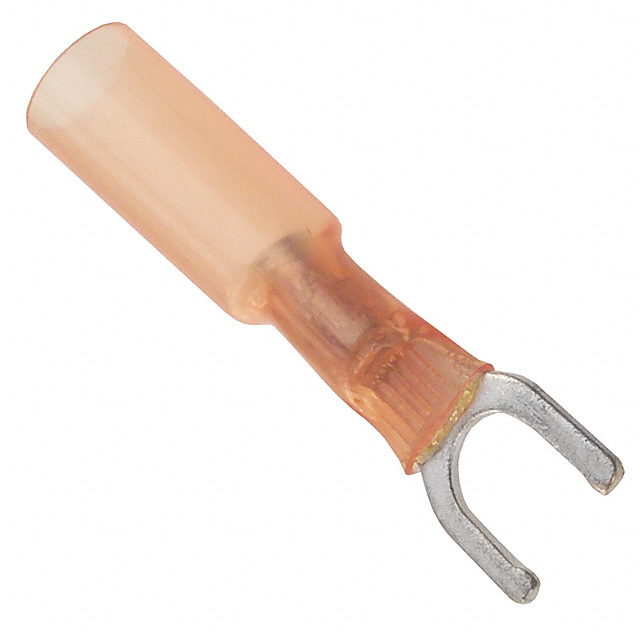

CONN SPADE TERM 18-22AWG #10 RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0191640008

Active

Molex

CONN SPADE TERM 18-22AWG #10 RED

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0191640008

Color	Red
Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Insulated with Heat Shrink
Insulation Diameter [diameter]	5.97 mm
Insulation Diameter [diameter]	0.235 in
Length - Overall [x]	34.04 mm
Length - Overall [x]	1.34 in
Material - Insulation	NiAc
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	10 Stud
Terminal Type	Standard
Termination	Crimp
Tongue Inside Opening [x]	5.03 mm
Tongue Inside Opening [x]	0.198 in
Width - Outer Edges [x]	8.2 mm
Width - Outer Edges [x]	0.323 in
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

019164 Series

...

Part	Length - Overall [x]	Length - Overall [x]	Contact Material	Termination	Color	Wire Gauge [Max]	Wire Gauge [Min]	Material - Insulation	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Mounting Type	Stud/Tab Size	Contact Finish	Terminal Type	Insulation Diameter	Insulation Diameter	Width - Outer Edges	Width - Outer Edges	Insulation	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Stud/Tab Size	Thickness	Thickness	Features	Width - Outer Edges [x]	Width - Outer Edges [x]	Number of Wire Entries	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation Diameter	Diameter - Barrel [diameter]	Diameter - Barrel [diameter]	Length - Barrel	Length - Barrel
Molex 0191640070	1.39 in	35.31 mm	Copper	Crimp	Yellow	12 AWG	10 AWG	NiAc	0.173 in	4.39 mm	Free Hanging (In-Line)	8 Stud	Electro-Tin	Standard	7.62 mm	0.3 in	9.91 mm	0.39 in	Insulated with Heat Shrink
Molex 0191640435				Crimp		22 AWG	17.5 AWG	NiAc											Insulated with Heat Shrink	5.97 mm	0.235 in	0.3125 Stud
Molex 0191640139			Copper Alloy	Crimp	Blue			NiAc			Free Hanging (In-Line)		Tin	Circular					Insulated with Heat Shrink	5.97 mm	0.235 in	0.3125 Stud	0.031 in	0.79 mm	Serrated Termination
Molex 0191640008	1.34 in	34.04 mm	Copper	Crimp	Red	22 AWG	17.5 AWG	NiAc	0.198 in	5.03 mm	Free Hanging (In-Line)		Electro-Tin	Standard					Insulated with Heat Shrink	5.97 mm	0.235 in	10 Stud				8.2 mm	0.323 in
Molex 0191640011				Crimp	Red	22 AWG	17.5 AWG							3 Way Splice					Partial Insulation									3
Molex 0191640031	1.45 in	36.83 mm	Copper Alloy	Crimp	Blue			NiAc			Free Hanging (In-Line)		Electro-Tin	Circular					Insulated with Heat Shrink	5.97 mm	0.235 in	4 Stud	0.031 in	0.79 mm					8.13 mm	0.32 in
Molex 0191640055	1.6 in	40.64 mm	Copper	Crimp	Blue			NiAc					Tin	Female Receptacle (Socket)	0.15 in				Fully Insulated Heat Shrink												3.81 mm
Molex 0191640054	1.6 in	40.64 mm	Copper	Crimp	Blue			NiAc					Tin	Female Receptacle (Socket)	0.15 in				Fully Insulated Heat Shrink												3.81 mm	3.96 mm	0.156 in
Molex 0191640028	1.42 in	36.07 mm	Copper	Crimp	Blue			NiAc	0.146 in	3.71 mm	Free Hanging (In-Line)		Electro-Tin	Standard					Insulated with Heat Shrink	5.97 mm	0.235 in	6 Stud							9.4 mm	0.37 in
Molex 0191640807	1.43 in	36.32 mm	Copper	Crimp	Red	22 AWG	17.5 AWG	NiAc					Tin	Male Pin (Plug)					Fully Insulated Heat Shrink	5.97 mm	0.235 in											3.96 mm	0.156 in	0.36 "	9.14 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.10
		10	$ 0.82
		25	$ 0.74
		50	$ 0.68
		100	$ 0.63
		250	$ 0.58
		500	$ 0.54
		1000	$ 0.51
		2500	$ 0.47

Description

General part information

019164 Series

Red 10 Stud Spade Terminal Connector Crimp 18-22 AWG

Documents

Technical documentation and resources
