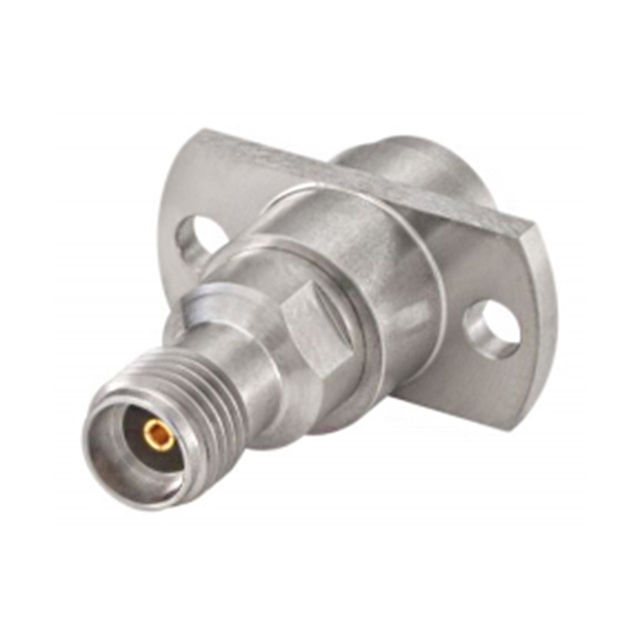

03K710-K22S3
ActiveRosenberger
PRECISION 3.5 ADAPTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
03K710-K22S3
ActiveRosenberger
PRECISION 3.5 ADAPTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 03K710-K22S3 |
|---|---|
| Adapter Series [Max] | RPC-SP |
| Adapter Series [Min] | RPC-3.50 |
| Adapter Type | Jack to Jack |
| Body Finish | White Bronze |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | 3.5mm Jack, Female Socket |
| Convert To (Adapter End) | SP Jack, Female Socket |
| Dielectric Material | Polystyrene (PS) |
| Fastening Type | Threaded, Snap-On |
| Frequency - Max [Max] | 22 GHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.24 dB |
| Mating Cycles | 1000 |
| Mounting Feature | Flange |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 429.94 | |
Description
General part information
03K710 Series
Adapter Coaxial Connector 3.5mm Jack, Female Socket To SP Jack, Female Socket 50 Ohms
