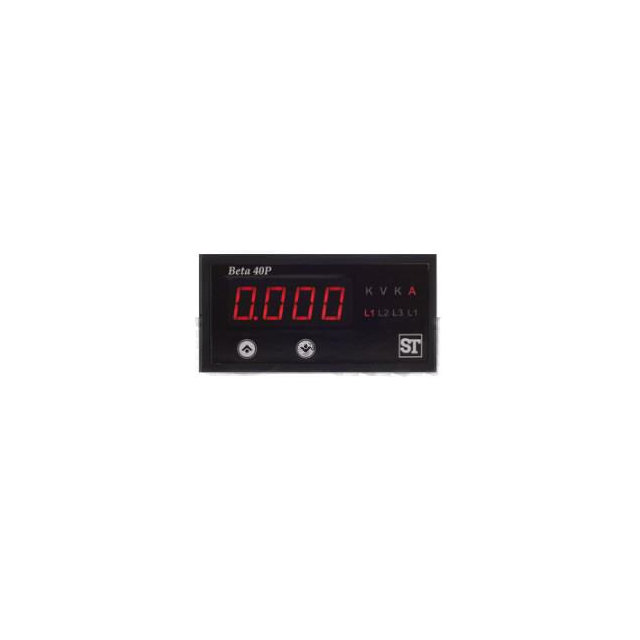

BT14-E1V14CL000000
ActiveSifam Tinsley Instrumentation Inc
VOLTMETER 120-500V LED PANEL MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BT14-E1V14CL000000
ActiveSifam Tinsley Instrumentation Inc
VOLTMETER 120-500V LED PANEL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BT14-E1V14CL000000 |
|---|---|
| Display Characters - Height [z] | 14 mm |
| Display Characters - Height [z] | 0.551 in |
| Display Type | LED - Red Characters |
| Ingress Protection | IP50 |
| Measuring Range [Max] | 500 V |
| Measuring Range [Min] | 120 V |
| Measuring Type | Voltage |
| Number of Characters Per Row | 4 |
| Panel Cutout Dimensions [x] | 92.8 mm |
| Panel Cutout Dimensions [y] | 44.1 mm |
| Termination Style | Screw Terminal |
| Type | Voltmeter |
| Voltage - Supply [Max] | 300 VAC/DC |
| Voltage - Supply [Min] | 40 VAC/DC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 75.00 | |
Description
General part information
BT14-E Series
Voltmeter LED - Red Characters Display Panel Mount
