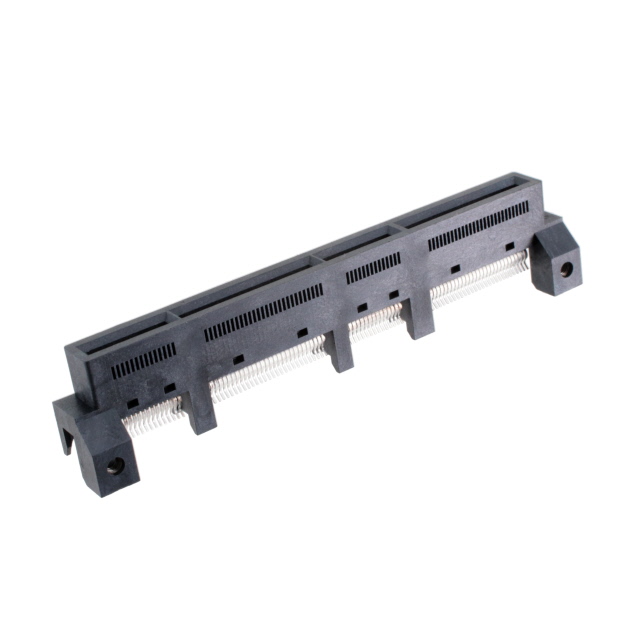

ME1016843433701
ActiveAmphenol ICC (FCI)
CONN EDGE DUAL FML 168POS 0.024
Deep-Dive with AI
Search across all available documentation for this part.
ME1016843433701
ActiveAmphenol ICC (FCI)
CONN EDGE DUAL FML 168POS 0.024
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ME1016843433701 |
|---|---|
| Card Thickness | 0.062 in |
| Card Thickness | 1.57 mm |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Flange Feature | Unthreaded, Straddle Mount Opening |
| Flange Feature | 2.2 mm |
| Flange Feature | 0.087 in |
| Gender | Female |
| Material - Insulation | Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 168 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.6 mm |
| Pitch [x] | 0.024 in |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 10.50 | |
| 10 | $ 8.06 | |||
| 25 | $ 7.28 | |||
| 40 | $ 6.92 | |||
| 80 | $ 6.48 | |||
| 230 | $ 6.06 | |||
| 440 | $ 5.59 | |||
| 945 | $ 5.22 | |||
Description
General part information
ME101 Series
168 Position Female Connector Non Specified - Dual Edge Gold 0.024" (0.60mm) Black
