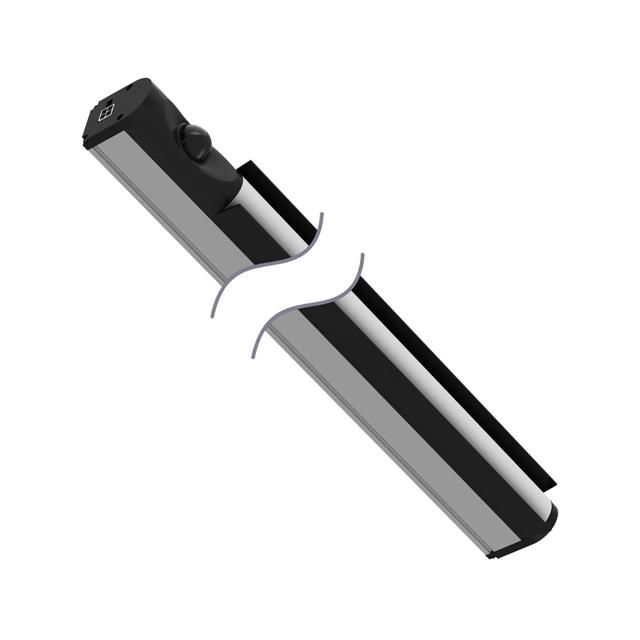

WLB32ZC570EMQM

Active

BANNER ENGINEERING

WLB32 WORK LIGHT BAR; MOTION SEN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WLB32ZC570EMQM

Active

BANNER ENGINEERING

WLB32 WORK LIGHT BAR; MOTION SEN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WLB32ZC570EMQM

Approval Agency	cULus, CE
Features	Motion Detection, Cascadable, Shield
Housing Material	Aluminum (Al)
Illumination Color	White, Cool
Ingress Protection	IP50
Length	570 mm
Length	22.44 in
Lens Type	Tubular, Diffused
Luminous Flux	1500 lm
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Profile (W x H) [x]	32 mm
Profile (W x H) [x]	1.26 in
Profile (W x H) [y]	1.81 in
Profile (W x H) [y]	46 mm
Rated Life	50000 Hours
Termination Style	Connector
Voltage - Supply [Max]	264 VAC
Voltage - Supply [Min]	90 VAC

WLB32ZC570 Series

Part	Features	Housing Material	Ingress Protection	Illumination Color	Rated Life	Luminous Flux	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Profile (W x H) [x]	Profile (W x H) [y]	Profile (W x H) [x]	Profile (W x H) [y]	Voltage - Supply [Max]	Voltage - Supply [Min]	Lens Type	Approval Agency	Termination Style
BANNER ENGINEERING WLB32ZC570QM	Cascadable	Aluminum (Al)	IP50	Cool White	50000 Hours	1500 lm	-40 °C	70 °C	570 mm	22.44 in	32 mm	1.81 in	1.26 in	46 mm	264 VAC	90 VAC	Diffused Tubular	CE cULus	Connector
BANNER ENGINEERING WLB32ZC570MQM	Cascadable Motion Detection	Aluminum (Al)	IP50	Cool White	50000 Hours	1500 lm	-40 °C	70 °C	570 mm	22.44 in	32 mm	1.81 in	1.26 in	46 mm	264 VAC	90 VAC	Diffused Tubular	CE cULus	Connector
BANNER ENGINEERING WLB32ZC570MQMB	Cascadable Motion Detection	Aluminum (Al)	IP50	Cool White	50000 Hours	1500 lm	-40 °C	70 °C	570 mm	22.44 in	32 mm	1.81 in	1.26 in	46 mm	264 VAC	90 VAC	Diffused Tubular	CE cULus	Connector
BANNER ENGINEERING WLB32ZC570PBQM	Cascadable High/Low/Off Switching	Aluminum (Al)	IP50	Cool White	50000 Hours	1500 lm	-40 °C	70 °C	570 mm	22.44 in	32 mm	1.81 in	1.26 in	46 mm	264 VAC	90 VAC	Diffused Tubular	CE cULus	Connector
BANNER ENGINEERING WLB32ZC570EMQM	Cascadable Motion Detection Shield	Aluminum (Al)	IP50	Cool White	50000 Hours	1500 lm	-40 °C	70 °C	570 mm	22.44 in	32 mm	1.81 in	1.26 in	46 mm	264 VAC	90 VAC	Diffused Tubular	CE cULus	Connector
BANNER ENGINEERING WLB32ZC570PBQMC	Cascadable High/Low/Off Switching	Aluminum (Al)	IP50	Cool White	50000 Hours	1500 lm	-40 °C	70 °C	570 mm	22.44 in	32 mm	1.81 in	1.26 in	46 mm	264 VAC	90 VAC	Diffused Tubular	CE cULus	Connector

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 216.00
Newark	Each	1	$ 216.00

Description

General part information

WLB32ZC570 Series

WLB32 WORK LIGHT BAR; MOTION SEN

Documents

Technical documentation and resources
