AMEL10-15S277HAVZ

Obsolete

aimtec

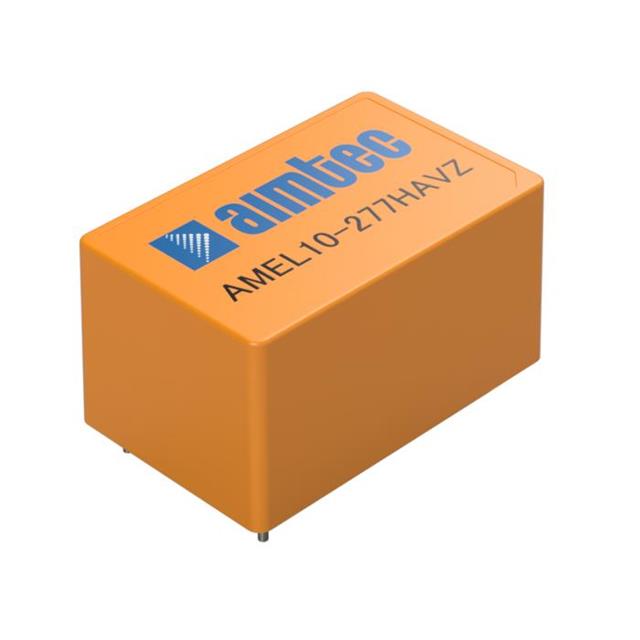

AC/DC POWER SUPPLY SINGLE-OUT 15V 0.66A 10W 4-PIN BOX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AMEL10-15S277HAVZ

Obsolete

aimtec

AC/DC POWER SUPPLY SINGLE-OUT 15V 0.66A 10W 4-PIN BOX

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AMEL10-15S277HAVZ

Applications	ITE (Commercial)
Approval Agency	UL, CE
Current - Output (Max) [Max]	660 mA
Efficiency	84 %
Line Regulation	0.5 %
Load Regulation	1 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module, 4 Leads
Power (Watts)	10 W
Size / Dimension [x]	1.58 "
Size / Dimension [x]	40 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	21 mm
Size / Dimension [z]	0.83 in
Standard Number	62368-1
Type	Enclosed
Voltage - Input [Max]	305 VAC, 430 VDC
Voltage - Input [Min]	100 V, 85 VAC
Voltage - Output 1	15 V
Weight	0.074 lb
Weight	34 g

AMEL10 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Output 1	Weight	Weight	Standard Number	Approval Agency	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Number of Outputs	Applications	Line Regulation	Load Regulation	Power (Watts)	Current - Output (Max) [Max]	Type	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Line Regulation	Load Regulation	Features
aimtec AMEL10-15S277HAVZ	85 °C	-40 °C	84 %	15 V	0.074 lb	34 g	62368-1	CE UL	6-DIP Module 4 Leads	25.4 mm	1.58 "	21 mm	40 mm	0.83 in	25.4 mm	1	ITE (Commercial)	0.5 %	1 %	10 W	660 mA	Enclosed	85 VAC 100 V	305 VAC 430 VDC	Through Hole
aimtec AMEL10-3.3SAZ	80 ¯C	-40 °C	70 %	3.3 V				CB CE cURus	5-DIP Module	1.21 in	2.22 in		56.5 mm	0.99 "		1	ITE (Commercial)			10 W	3 A	Enclosed	90 VAC 130 VDC	305 VAC 430 VDC	Through Hole	25.1 mm	30.9 mm	4 Lead
aimtec AMEL10-5S277NZ	70 °C	-40 °C	76 %	5 V	0.106 lb	48 g			4-DIP Module	1.13 in	2.12 "		53.8 mm	0.75 in		1	ITE (Commercial)			10 W	2 A	Enclosed	85 VAC 100 V	305 VAC 430 VDC	Through Hole	19 mm	28.8 mm		Ý0.5%	Ý1%
aimtec AMEL10-9SJZ			80 %	9 V	0.106 lb	48 g			4-DIP Module	1.13 in	2.12 "		53.8 mm	0.75 in		1	ITE (Commercial)	0.5 %	1 %	10 W		Enclosed	85 VAC 100 V	264 VAC 370 VDC	Through Hole	19 mm	28.8 mm				Universal Input
aimtec AMEL10-5SMAZ			75 %	5 V				CB CE cURus	5-DIP Module	1.21 in	2.22 in		56.5 mm	0.99 "		1	ITE (Commercial) Medical			10 W	2 A	Enclosed	90 VAC 130 VDC	264 VAC 370 VDC	Through Hole	25.1 mm	30.9 mm	4 Lead			Universal Input
aimtec AMEL10-3.3S277NZ			72 %	3.3 V	0.106 lb	48 g			4-DIP Module	1.13 in	2.12 "		53.8 mm	0.75 in		1	ITE (Commercial)	0.5 %	1 %	6.6 W	2 A	Enclosed	85 VAC 100 V	305 VAC 430 VDC	Through Hole	19 mm	28.8 mm
aimtec AMEL10-12S277HAVZ	85 °C	-40 °C	84 %	12 V	0.074 lb	34 g	62368-1	CE UL	6-DIP Module 4 Leads	25.4 mm	1.58 "	21 mm	40 mm	0.83 in	25.4 mm	1	ITE (Commercial)	0.5 %	1 %	10 W	830 mA	Enclosed	85 VAC 100 V	305 VAC 430 VDC	Through Hole
aimtec AMEL10-15SAZ	80 ¯C	-40 °C	80 %	15 V				CB CE cURus	5-DIP Module	1.21 in	2.22 in		56.5 mm	0.99 "		1	ITE (Commercial)			10 W	670 mA	Enclosed	90 VAC 130 VDC	305 VAC 430 VDC	Through Hole	25.1 mm	30.9 mm	4 Lead
aimtec AMEL10-12SJZ			81 %	12 V	0.106 lb	48 g			4-DIP Module	1.13 in	2.12 "		53.8 mm	0.75 in		1	ITE (Commercial)	0.5 %	1 %	11 W	900 mA	Enclosed	85 VAC 100 V	264 VAC 370 VDC	Through Hole	19 mm	28.8 mm				Universal Input
aimtec AMEL10-24S277HAVZ	85 °C	-40 °C	85 %	24 V	0.074 lb	34 g	62368-1	CE UL	6-DIP Module 4 Leads	25.4 mm	1.58 "	21 mm	40 mm	0.83 in	25.4 mm	1	ITE (Commercial)	0.5 %	1 %	10 W	410 mA	Enclosed	85 VAC 100 V	305 VAC 430 VDC	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.05
		5	$ 10.41
		10	$ 10.14
		25	$ 9.80
		50	$ 9.56
		100	$ 9.31

Description

General part information

AMEL10 Series

Enclosed AC DC Converters 1 Output 15V 660mA 85 ~ 305 VAC, 100 ~ 430 VDC Input
