L6R90DM-120-C8

Active

Tri-Mag, LLC

AC/DC DESKTOP ADAPTER 12V 84W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L6R90DM-120-C8

Active

Tri-Mag, LLC

AC/DC DESKTOP ADAPTER 12V 84W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L6R90DM-120-C8

Applications	Medical
Approval Agency	TUV, cULus, EN, FCC, CE
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max)	7 A
Efficiency	Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	84 W
Region Utilized	International
Size / Dimension [x]	150.9 mm
Size / Dimension [x]	5.94 in
Size / Dimension [y]	2.52 "
Size / Dimension [y]	64 mm
Size / Dimension [z]	1.38 in
Size / Dimension [z]	35.1 mm
Standard Number	60601-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

L6R90 Series

Part	Standard Number	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Voltage - Output	Input Type	Operating Temperature [Max]	Output Connector [diameter]	Output Connector [x]	Output Connector	Form	Input Connector	Region Utilized	Efficiency	Cord Length	Cord Length	Applications	Approval Agency	No Load Power Consumption [Max]	Polarization	Current - Output (Max) [Max]	Weight	Weight	No Load Power Consumption	Current - Output (Max)
Tri-Mag, LLC L6R90DM-190-C14	60601-1	1.38 in	150.9 mm	35.1 mm	5.94 in	2.52 "	64 mm	90 VAC	264 VAC	90 W	19 V	Cord	40 °C	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Desktop (Class I)	IEC 320-C14	International	Level VI	1.5 m	59 in	Medical	CE cULus EN FCC TUV	150 mW	Positive Center
Tri-Mag, LLC L6R90D-240-C6	62368-1	1.42 in	139 mm	36 mm	5.47 in	2.4 "	61 mm	90 VAC	264 VAC	90 W	24 V	Cord	40 °C	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Desktop (Class I)	IEC 320-C6	International	CoC Tier 2 Level VI	1.5 m	59 in	ITE (Commercial)	CE cULus EN FCC TUV		Positive Center	3.75 A	1.1 lbs	499 g	210 mW
Tri-Mag, LLC L6R90D-300-C6	62368-1	1.42 in	139 mm	36 mm	5.47 in	2.4 "	61 mm	90 VAC	264 VAC	90 W	30 VDC	Cord	40 °C	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Desktop (Class I)	IEC 320-C6	International	CoC Tier 2 Level VI	1.5 m	59 in	ITE (Commercial)	CE cULus EN FCC TUV		Positive Center	3 A	1.1 lbs	499 g	210 mW
Tri-Mag, LLC L6R90D-560-C14	62368-1	1.42 in	151 mm	36 mm	5.94 in	2.52 "	64 mm	90 VAC	264 VAC	90 W	56 V	Cord	40 °C	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Desktop (Class I)	IEC 320-C14	International	CoC Tier 2 Level VI	1.5 m	59 in	ITE (Commercial)	CE cULus EN FCC TUV		Positive Center	1.6 A	1.1 lbs	499 g	210 mW
Tri-Mag, LLC L6R90D-180-C14	62368-1	1.42 in	151 mm	36 mm	5.94 in	2.52 "	64 mm	90 VAC	264 VAC	90 W	18 V	Cord	40 °C	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Desktop (Class I)	IEC 320-C14	International	CoC Tier 2 Level VI	1.5 m	59 in	ITE (Commercial)	CE cULus EN FCC TUV		Positive Center	5 A	1.1 lbs	499 g	210 mW
Tri-Mag, LLC L6R90DM-180-C14	60601-1	1.38 in	150.9 mm	35.1 mm	5.94 in	2.52 "	64 mm	90 VAC	264 VAC	90 W	18 V	Cord	40 °C	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Desktop (Class I)	IEC 320-C14	International	Level VI	1.5 m	59 in	Medical	CE cULus EN FCC TUV	150 mW	Positive Center	5 A
Tri-Mag, LLC L6R90D-480-C6	62368-1	1.42 in	139 mm	36 mm	5.47 in	2.4 "	61 mm	90 VAC	264 VAC	90 W	48 V	Cord	40 °C	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Desktop (Class I)	IEC 320-C6	International	CoC Tier 2 Level VI	1.5 m	59 in	ITE (Commercial)	CE cULus EN FCC TUV		Positive Center	1.88 A	1.1 lbs	499 g	210 mW
Tri-Mag, LLC L6R90DM-120-C8	60601-1	1.38 in	150.9 mm	35.1 mm	5.94 in	2.52 "	64 mm	90 VAC	264 VAC	84 W	12 V	Cord	40 °C	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Desktop (Class II)	IEC 320-C8	International	Level VI	1.5 m	59 in	Medical	CE cULus EN FCC TUV	150 mW	Positive Center					7 A
Tri-Mag, LLC L6R90DM-480-C8	60601-1	1.38 in	150.9 mm	35.1 mm	5.94 in	2.52 "	64 mm	90 VAC	264 VAC	90 W	48 V	Cord	40 °C	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Desktop (Class II)	IEC 320-C8	International	Level VI	1.5 m	59 in	Medical	CE cULus EN FCC TUV	150 mW	Positive Center	1.88 A
Tri-Mag, LLC L6R90D-160-C6	62368-1	1.42 in	139 mm	36 mm	5.47 in	2.4 "	61 mm	90 VAC	264 VAC	90 W	16 V	Cord	40 °C	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Desktop (Class I)	IEC 320-C6	International	CoC Tier 2 Level VI	1.5 m	59 in	ITE (Commercial)	CE cULus EN FCC TUV		Positive Center	5.63 A	1.1 lbs	499 g	210 mW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 38.76

Description

General part information

L6R90 Series

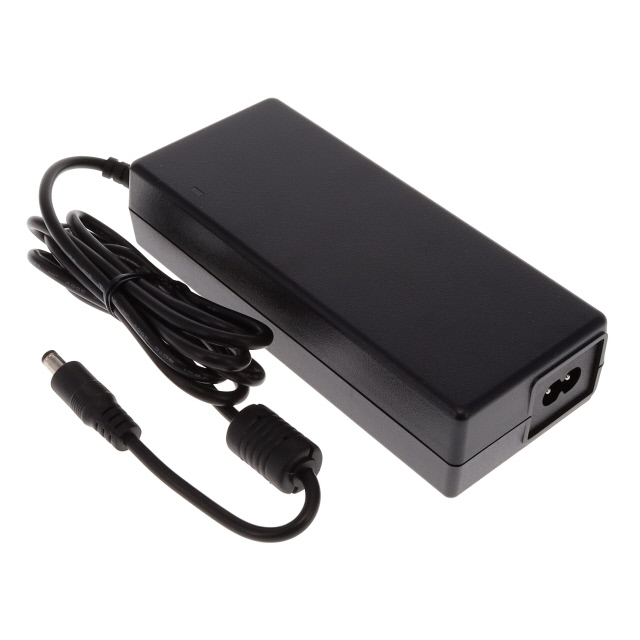

12V 84 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
