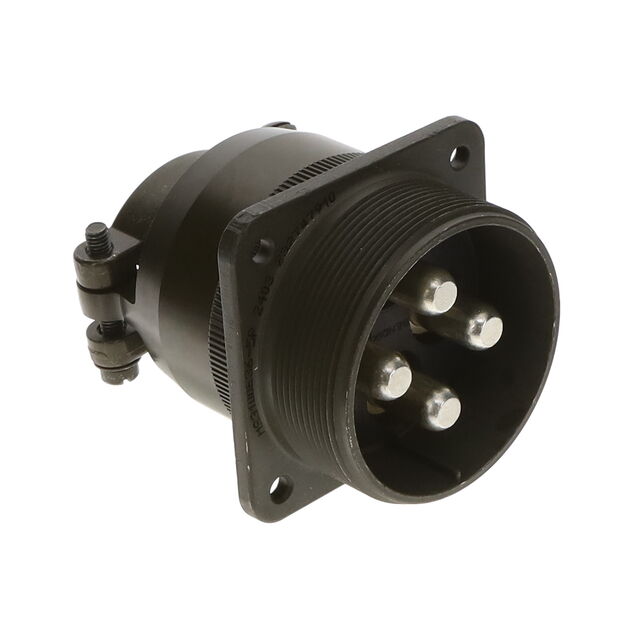

MS3100E36-5P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Technical Specifications

Parameters and characteristics for this part

Specification	MS3100E36-5P

Applications	Military, Marine
Cable Opening [diameter]	31.75 mm
Cable Opening [diameter]	1.25 in
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	150 A
Features	Cable Clamp
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	5
Shell Size - Insert [Min]	36
Shielding	Unshielded
Voltage Rating	700 VDC, 500 VAC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Cable Opening [diameter]	Cable Opening [diameter]	Current Rating (Amps)	Number of Positions	Shell Material	Color	Contact Material	Primary Material	Mounting Feature	Insert Material	Shell Finish	Connector Type	Qualification	Ingress Protection	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Features	Orientation	Voltage Rating	Applications	Contact Finish - Mating
Amphenol Industrial Operations MS3100E36-5P	-55 °C	125 °C	Unshielded	31.75 mm	1.25 in	150 A	4	Aluminum Alloy	Olive Drab	Copper Alloy	Metal	Flange	Neoprene	Olive Drab Chromate over Cadmium	Male Pins Receptacle	MIL-5015	Environment Resistant	5	36	Cable Clamp	N	500 VAC 700 VDC	Marine Military	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder Cup
