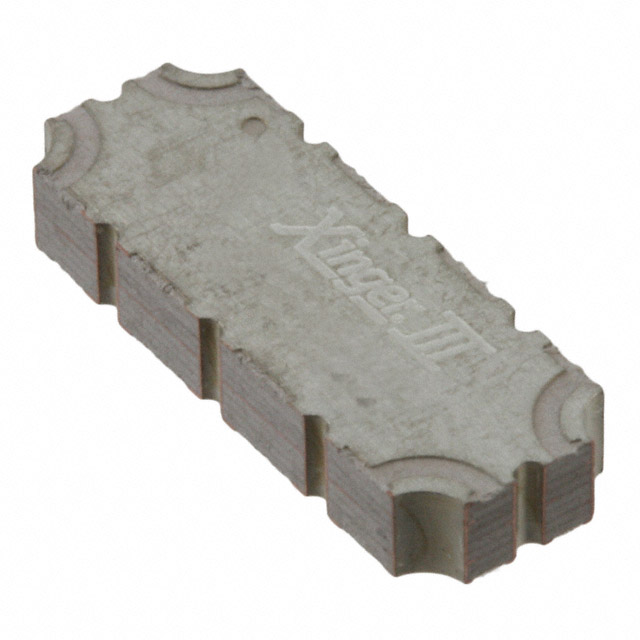

X3C21P2-03S
ActiveTTM Technologies, Inc.
RF DIR COUPLER 2GHZ-2.3GHZ SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
X3C21P2-03S
ActiveTTM Technologies, Inc.
RF DIR COUPLER 2GHZ-2.3GHZ SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | X3C21P2-03S |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Coupling Factor | 3 dB |
| Frequency [Max] | 2.3 GHz |
| Frequency [Min] | 2 GHz |
| Insertion Loss | 0.22 dB |
| Isolation | 25 dB |
| Package / Case | 4-SMD, No Lead |
| Power - Max [Max] | 172 W |
| Return Loss | 25 dB |
| Supplier Device Package | SMD |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.38 | |
| 10 | $ 3.79 | |||
| 25 | $ 3.58 | |||
| 100 | $ 3.30 | |||
| 250 | $ 3.13 | |||
| 500 | $ 3.01 | |||
| 1000 | $ 2.90 | |||
| Digi-Reel® | 1 | $ 4.38 | ||
| 10 | $ 3.79 | |||
| 25 | $ 3.58 | |||
| 100 | $ 3.30 | |||
| 250 | $ 3.13 | |||
| 500 | $ 3.01 | |||
| 1000 | $ 2.90 | |||
| Tape & Reel (TR) | 2000 | $ 2.24 | ||
Description
General part information
X3C21P2 Series
RF Directional Coupler General Purpose 2GHz ~ 2.3GHz 3dB 172W 4-SMD, No Lead
