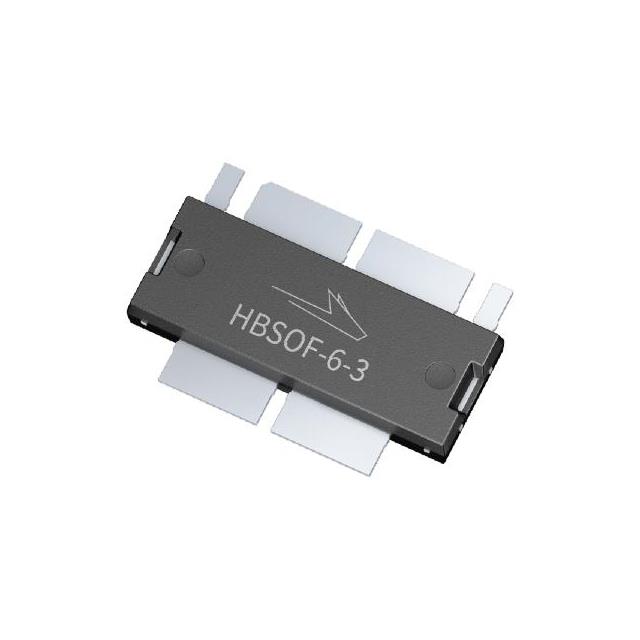

PTRA094858NF-V1-R5
ActiveMACOM Technology Solutions
RF MOSFET LDMOS 48V 6HBSOF
Deep-Dive with AI
Search across all available documentation for this part.
PTRA094858NF-V1-R5
ActiveMACOM Technology Solutions
RF MOSFET LDMOS 48V 6HBSOF
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PTRA094858NF-V1-R5 |
|---|---|
| Current - Test | 450 mA |
| Current Rating (Amps) | 10 µA |
| Frequency [Max] | 960 MHz |
| Frequency [Min] | 859 MHz |
| Gain | 17.75 dB |
| Mounting Type | Surface Mount |
| Package / Case | PG-HBSOF-6-3 |
| Power - Output | 400 W |
| Supplier Device Package | PG-HBSOF-6-3 |
| Voltage - Rated | 105 V |
| Voltage - Test | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 500 | $ 109.39 | |
Description
General part information
PTRA094858 Series
RF Mosfet 48 V 450 mA 859MHz ~ 960MHz 17.75dB 400W PG-HBSOF-6-3
Documents
Technical documentation and resources
No documents available
