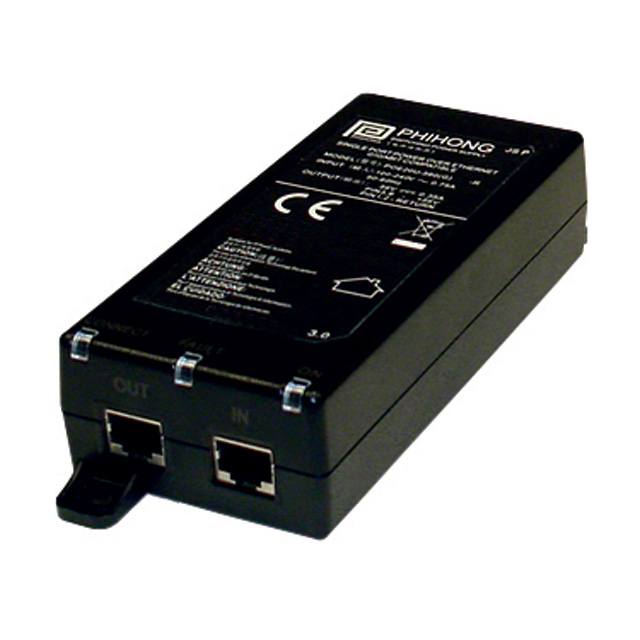

POE20D-1AF
ActivePhihong USA
POE INJECTOR 19.6W 56V DESKTOP
Deep-Dive with AI
Search across all available documentation for this part.
POE20D-1AF
ActivePhihong USA
POE INJECTOR 19.6W 56V DESKTOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | POE20D-1AF |
|---|---|
| Approval Agency | CE |
| Compliance | IEEE802.3af |
| Current - Output | 350 mA |
| Data Rate | 10 Mbps, 1000 Mbps, 100 Mbps |
| Efficiency | 80 % |
| Features | SCP, OCP, OVP |
| Input Connector | RJ45 (Data), Terminal Block (Power) |
| Mounting Type | Desktop |
| Number of Ports | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Output Connector | RJ45 (Data, Power) |
| Power (Watts) - Per Port | 19.6 W |
| Size / Dimension [x] | 5.51 " |
| Size / Dimension [x] | 140 mm |
| Size / Dimension [y] | 65 mm |
| Size / Dimension [y] | 2.55 " |
| Size / Dimension [z] | 1.42 in |
| Size / Dimension [z] | 36 mm |
| Type | Midspan Injector |
| Voltage - Input [Max] | 72 V |
| Voltage - Input [Min] | 18 V |
| Voltage - Output | 56 V |
| Weight | 200.03 g |
| Weight | 0.441 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 46.69 | |
| 10 | $ 42.95 | |||
| 25 | $ 39.42 | |||
| 100 | $ 36.16 | |||
| 250 | $ 33.17 | |||
Description
General part information
POE20D Series
56V Power Over Ethernet (POE) 1 Port Midspan Injector 10/100/1000 Mbps Data Rate
