XTC7006
ObsoleteMurata Power Solutions Inc.
XTAL OSC TCXO 26.0000MHZ SNWV
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XTC7006
ObsoleteMurata Power Solutions Inc.
XTAL OSC TCXO 26.0000MHZ SNWV
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XTC7006 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 1.5 mA |
| Frequency | 26 MHz |
| Frequency Stability | 500 ppb |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Output | Clipped Sine Wave |

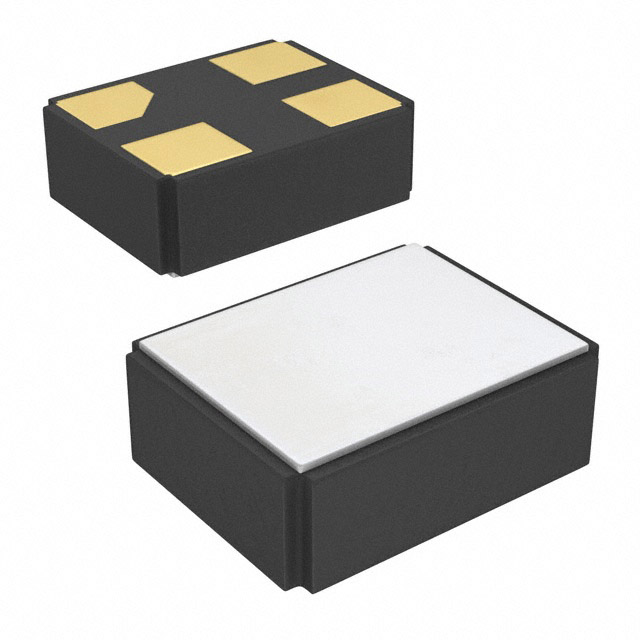

| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | TCXO |
| Voltage - Supply | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
XTC70 Series
26 MHz TCXO Clipped Sine Wave Oscillator 3V 4-SMD, No Lead
