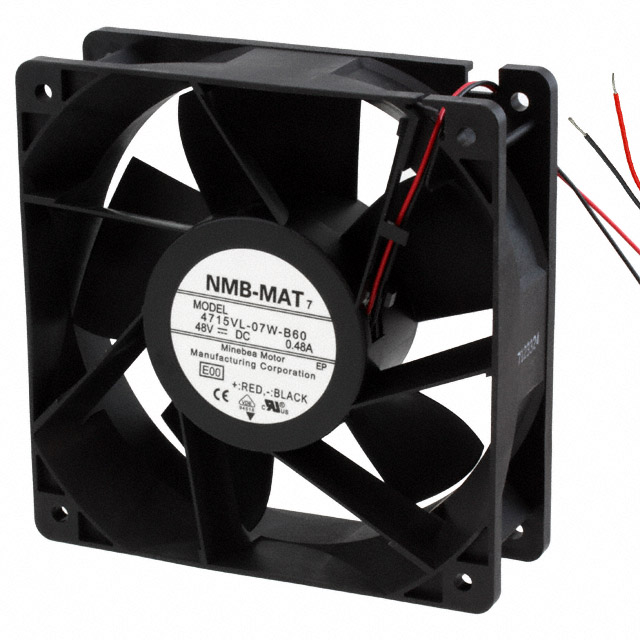

4715VL-07W-B60-E00

Obsolete

NMB TECHNOLOGIES

DC AXIAL FAN, 48 V, SQUARE, 120 MM, 38 MM, BALL BEARING, 189.9 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Fans & Blowers Catalog +2

4715VL-07W-B60-E00

Obsolete

NMB TECHNOLOGIES

DC AXIAL FAN, 48 V, SQUARE, 120 MM, 38 MM, BALL BEARING, 189.9 CFM

Deep-Dive with AI

DocumentsDatasheet Fans & Blowers Catalog +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4715VL-07W-B60-E00

Air Flow	189.9 CFM
Air Flow	5.32 m³/min
Approval Agency	UL, VDE, CE
Bearing Type	Ball
Current Rating (Amps)	450 mA
Fan Type	Tubeaxial
Lifetime @ Temp.	100000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	59.5 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	21.6 W
RPM	5000 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	229.2 Pa
Static Pressure	0.92 in H2O
Termination	2 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	55.2 VDC
Voltage Range [Min]	40 V
Weight	370.13 g
Weight	0.816 lb
Width [y]	38 mm

4715VL Series

Part	RPM	Size / Dimension [y]	Size / Dimension [x]	Voltage - Rated [custom]	Approval Agency	Bearing Type	Air Flow	Air Flow	Features	Current Rating (Amps)	Power (Watts)	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Termination	Material - Blade	Noise	Width [y]	Weight	Weight	Fan Type	Material - Frame	Static Pressure	Static Pressure	Voltage - Rated
NMB TECHNOLOGIES 4715VL-07W-B69-E00	5000 RPM	120 mm	120 mm	48 VDC	CE UL VDE	Ball	189.9 CFM	5.32 m³/min	Locked Rotor Sensor	450 mA	21.6 W	100000 Hrs	55.2 VDC	40 V	-10 °C	-10 °C	60 °C	60 °C	3 Wire Leads	Plastic	59.5 dB	38 mm	370.13 g	0.816 lb	Tubeaxial	Plastic	229.2 Pa	0.92 in H2O
NMB TECHNOLOGIES 4715VL-07W-B80-E00	6400 RPM	120 mm	120 mm	48 VDC	CE UL VDE	Ball	243.2 CFM	6.81 mł/min		800 mA	38.4 W	100000 Hrs	52 VDC	40 V	-10 °C	-10 °C	60 °C	60 °C	2 Wire Leads	Plastic		38 mm	370.13 g	0.816 lb	Tubeaxial	Plastic
NMB TECHNOLOGIES 4715VL-05W-B79-E00	5700 RPM	120 mm	120 mm		CE UL VDE	Ball	215.7 CFM	6.04 m³/min	Locked Rotor Sensor	1.04 A	25 W	100000 Hrs	27.6 VDC	18 VDC	-10 °C	-10 °C	60 °C	60 °C	3 Wire Leads	Plastic	63 dB	38 mm	370.13 g	0.816 lb	Tubeaxial	Plastic	286.5 Pa	1.15 in H2O	24 VDC
NMB TECHNOLOGIES 4715VL-05W-B89-E00	6400 RPM	120 mm	120 mm		CE UL VDE	Ball	243.2 CFM	6.81 mł/min	Locked Rotor Sensor	1.48 A	35.5 W	100000 Hrs	27.6 VDC	18 VDC	-10 °C	-10 °C	60 °C	60 °C	3 Wire Leads	Plastic		38 mm	370.13 g	0.816 lb	Tubeaxial	Plastic			24 VDC
NMB TECHNOLOGIES 4715VL-05W-B70-E00	5700 RPM	120 mm	120 mm		CE UL VDE	Ball	215.7 CFM	6.04 m³/min		1.04 A	25 W	100000 Hrs	27.6 VDC	18 VDC	-10 °C	-10 °C	60 °C	60 °C	2 Wire Leads	Plastic	63 dB	38 mm	370.13 g	0.816 lb	Tubeaxial	Plastic	286.5 Pa	1.15 in H2O	24 VDC
NMB TECHNOLOGIES 4715VL-05W-B89-E50	6400 RPM	120 mm	120 mm		CE UL VDE	Ball	243.2 CFM	6.81 mł/min	Speed Sensor (Tach)	1.48 A	35.5 W	100000 Hrs	27.6 VDC	18 VDC	-10 °C	-10 °C	60 °C	60 °C	3 Wire Leads	Plastic		38 mm	370.13 g	0.816 lb	Tubeaxial	Plastic			24 VDC
NMB TECHNOLOGIES 4715VL-07W-B89-E00	6400 RPM	120 mm	120 mm	48 VDC	CE UL VDE	Ball	243.2 CFM	6.81 mł/min	Locked Rotor Sensor	800 mA	38.4 W	100000 Hrs	52 VDC	40 V	-10 °C	-10 °C	60 °C	60 °C	3 Wire Leads	Plastic		38 mm	370.13 g	0.816 lb	Tubeaxial	Plastic
NMB TECHNOLOGIES 4715VL-07W-B60-E00	5000 RPM	120 mm	120 mm	48 VDC	CE UL VDE	Ball	189.9 CFM	5.32 m³/min		450 mA	21.6 W	100000 Hrs	55.2 VDC	40 V	-10 °C	-10 °C	60 °C	60 °C	2 Wire Leads	Plastic	59.5 dB	38 mm	370.13 g	0.816 lb	Tubeaxial	Plastic	229.2 Pa	0.92 in H2O
NMB TECHNOLOGIES 4715VL-07W-B89-E50	6400 RPM	120 mm	120 mm	48 VDC	CE UL VDE	Ball	243.2 CFM	6.81 mł/min	Speed Sensor (Tach)	800 mA	38.4 W	100000 Hrs	52 VDC	40 V	-10 °C	-10 °C	60 °C	60 °C	3 Wire Leads	Plastic		38 mm	370.13 g	0.816 lb	Tubeaxial	Plastic
NMB TECHNOLOGIES 4715VL-04W-B70-E00	5700 RPM	120 mm	120 mm		CE UL VDE	Ball	215.7 CFM	6.04 m³/min		2.25 A	27 W	100000 Hrs	13.8 VDC	10 VDC	-10 °C	-10 °C	60 °C	60 °C	2 Wire Leads	Plastic	63 dB	38 mm	370.13 g	0.816 lb	Tubeaxial	Plastic	286.5 Pa	1.15 in H2O	12 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 35.23

Description

General part information

4715VL Series

The 4715VL-07W-B60-E00 is a 48VDC Axial Fan with a ball bearing and black plastic (UL94V-0) impeller. This 4715VL series DC fan comes with a black plastic (UL94V-0) casing and power connection is via UL1007 24AWG leaded wire cable. The motor is featured with auto restart/polarity protection. The air outlet over struts and the direction of rotation is clockwise direction.
