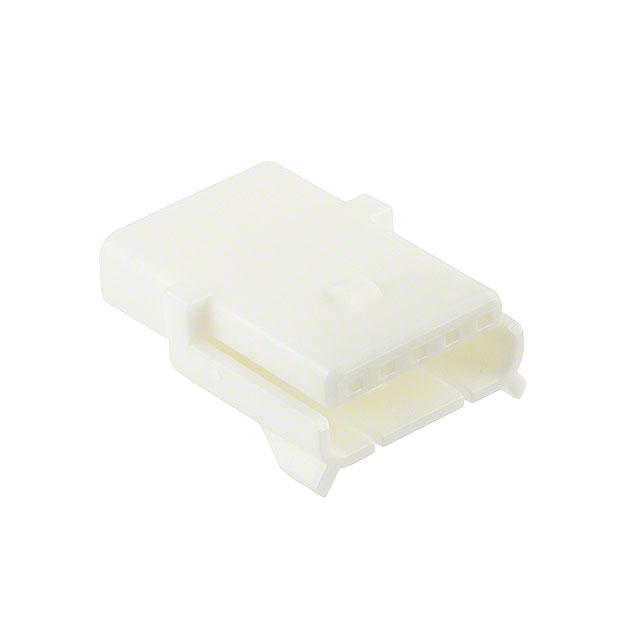

0368770005

Obsolete

Molex

CONN PWR LOCK HSG 5POS 2.50MM

Search across all available documentation for this part.

Obsolete

Molex

CONN PWR LOCK HSG 5POS 2.50MM

Technical Specifications

Parameters and characteristics for this part

Specification	0368770005

Color	Natural
Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Termination	Crimp
Contact Type	Non-Gendered
Fastening Type	Friction Lock
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm

Part	Number of Rows	Pitch [x]	Pitch [x]	Note	Fastening Type	Contact Type	Contact Termination	Insulation Material	Mounting Type	Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions
Molex 0368770005	1	0.098 in	2.5 mm	Contacts Not Included	Friction Lock	Non-Gendered	Crimp	Polyamide (PA66) Nylon 6/6	Free Hanging (In-Line)	Natural	Self Mating Non-Gendered Hermaphroditic	-40 °C	105 ░C
Molex 0368770007	1	0.098 in	2.5 mm	Contacts Not Included	Friction Lock	Non-Gendered	Crimp	Polyamide (PA66) Nylon 6/6	Free Hanging (In-Line)	Natural	Self Mating Non-Gendered Hermaphroditic	-40 °C	105 ░C	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Rectangular Connectors - Housings Self Mating, Non-Gendered, Hermaphroditic Natural 0.098" (2.50mm)
