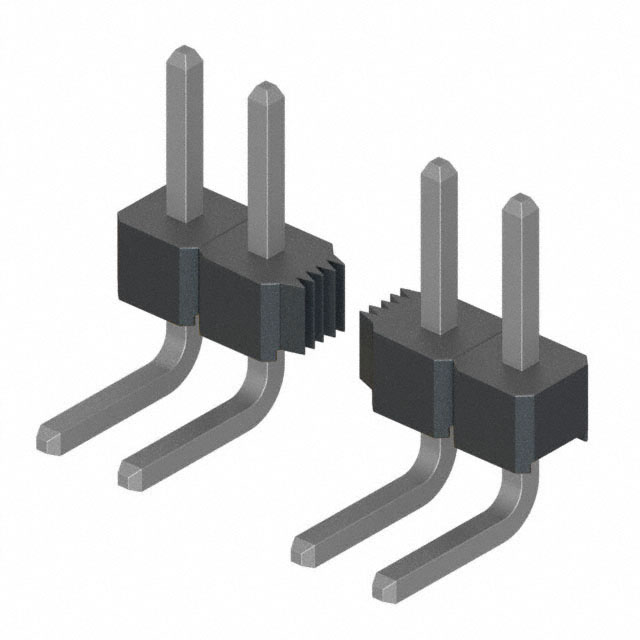

M22-2030646

Active

Harwin Inc.

BOARD CONNECTOR, 6 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, 0.079 INCH PITCH, SOLDER TERMINAL, BLACK INSULATOR, RECEPTACLE,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM20-003 M22 Series Spec Sheet +1

M22-2030646

Active

Harwin Inc.

BOARD CONNECTOR, 6 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, 0.079 INCH PITCH, SOLDER TERMINAL, BLACK INSULATOR, RECEPTACLE,

Deep-Dive with AI

DocumentsM20-003 M22 Series Spec Sheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M22-2030646

Connector Type	Cuttable, Header
Contact Finish - Post	Tin
Contact Length - Mating	0.138 in
Contact Length - Mating	3.5 mm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.079 in
Insulation Height	2 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Unshrouded
Termination	Solder

M22-203 Series

Part	Mounting Type	Insulation Color	Insulation Height	Insulation Height	Material Flammability Rating	Contact Shape	Contact Finish - Mating	Insulation Material	Number of Positions Loaded	Current Rating (Amps)	Termination	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Contact Length - Mating	Contact Length - Mating	Connector Type	Contact Length - Post	Contact Length - Post	Contact Material	Shrouding	Contact Finish - Post
Harwin Inc. M22-2032405	Through Hole Right Angle	Black	0.079 in	2 mm	UL94 V-0	Square	Gold	Nylon 6T Polyamide (PA6T)	All	1 A	Solder	Male Pin	0.079 in	2 mm	1	24	105 ░C	-55 °C	Push-Pull	0.138 in	3.5 mm	Cuttable Header	0.118 in	3 mm	Phosphor Bronze	Unshrouded
Harwin Inc. M22-2030746	Through Hole Right Angle	Black	0.079 in	2 mm	UL94 V-0	Square		Nylon 6T Polyamide (PA6T)	All	1 A	Solder	Male Pin	0.079 in	2 mm	1	7	105 ░C	-55 °C	Push-Pull	0.138 in	3.5 mm	Cuttable Header	0.118 in	3 mm	Phosphor Bronze	Unshrouded	Tin
Harwin Inc. M22-2032205	Through Hole Right Angle	Black	0.079 in	2 mm	UL94 V-0	Square	Gold	Nylon 6T Polyamide (PA6T)	All	1 A	Solder	Male Pin	0.079 in	2 mm	1	22 positions	105 ░C	-55 °C	Push-Pull	0.138 in	3.5 mm	Cuttable Header	0.118 in	3 mm	Phosphor Bronze	Unshrouded
Harwin Inc. M22-2030646	Through Hole Right Angle	Black	0.079 in	2 mm	UL94 V-0	Square		Nylon 6T Polyamide (PA6T)	All	1 A	Solder	Male Pin	0.079 in	2 mm	1	6	105 ░C	-55 °C	Push-Pull	0.138 in	3.5 mm	Cuttable Header	0.118 in	3 mm	Phosphor Bronze	Unshrouded	Tin
Harwin Inc. M22-2030405	Through Hole Right Angle	Black	0.079 in	2 mm	UL94 V-0	Square	Gold	Nylon 6T Polyamide (PA6T)	All	1 A	Solder	Male Pin	0.079 in	2 mm	1	4	105 ░C	-55 °C	Push-Pull	0.138 in	3.5 mm	Cuttable Header	0.118 in	3 mm	Phosphor Bronze	Unshrouded
Harwin Inc. M22-2031005	Through Hole Right Angle	Black	0.079 in	2 mm	UL94 V-0	Square	Gold	Nylon 6T Polyamide (PA6T)	All	1 A	Solder	Male Pin	0.079 in	2 mm	1	10	105 ░C	-55 °C	Push-Pull	0.138 in	3.5 mm	Cuttable Header	0.118 in	3 mm	Phosphor Bronze	Unshrouded
Harwin Inc. M22-2030905	Through Hole Right Angle	Black	0.079 in	2 mm	UL94 V-0	Square	Gold	Nylon 6T Polyamide (PA6T)	All	1 A	Solder	Male Pin	0.079 in	2 mm	1	9	105 ░C	-55 °C	Push-Pull	0.138 in	3.5 mm	Cuttable Header	0.118 in	3 mm	Phosphor Bronze	Unshrouded
Harwin Inc. M22-2030846	Through Hole Right Angle	Black	0.079 in	2 mm	UL94 V-0	Square		Nylon 6T Polyamide (PA6T)	All	1 A	Solder	Male Pin	0.079 in	2 mm	1	8	105 ░C	-55 °C	Push-Pull	0.138 in	3.5 mm	Cuttable Header	0.118 in	3 mm	Phosphor Bronze	Unshrouded	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.44
		10	$ 0.38
		100	$ 0.32
		500	$ 0.29
		1000	$ 0.27
		5000	$ 0.24
		10000	$ 0.23
Newark	Each	1000	$ 0.26

Description

General part information

M22-203 Series

Connector Header Through Hole, Right Angle 6 position 0.079" (2.00mm)

Documents

Technical documentation and resources

M20-003

M22 Series Spec Sheet

Datasheet
