6GK57980CP001AA0

Active

Siemens

CONNECTOR, MALE/MALE, CLUTCH ELE

Search across all available documentation for this part.

Active

Siemens

CONNECTOR, MALE/MALE, CLUTCH ELE

Technical Specifications

Parameters and characteristics for this part

Part	Adapter Series	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Ingress Protection	Style	Insertion Loss	Center Gender	Convert From (Adapter End)	Conversion Type	Convert To (Adapter End)	Impedance	Adapter Type	Accessory Type	For Use With/Related Products
Siemens 6GK57980SN000EA0	N to N	6000 MHz	-40 °C	110 °C	Free Hanging (In-Line)	IP66/IP68	T-Shape	3.05 dB	Female to Female	Female Socket N Jack	Same Series	Female Socket (2) N Jack	50 Ohms	Jack to Jack
Siemens 6GK57980CP001AA0	N to N	6000 MHz	-40 °C	70 °C	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	Straight		Male to Male	HN Plug Male Pin	Same Series	HN Plug Male Pin	50 Ohms	Plug to Plug
Siemens 6GK57980CN000AA0															Connector
Siemens 6GK57980AP004CA0															Attenuator	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 23.63

General part information

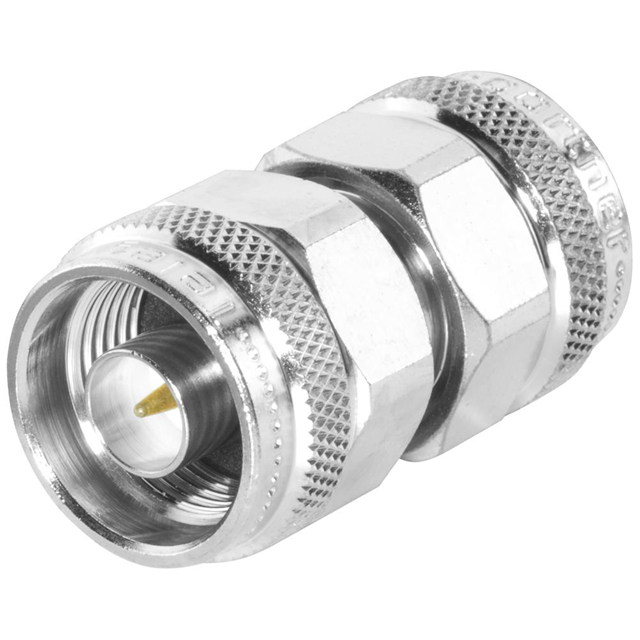

Adapter Coaxial Connector HN Plug, Male Pin To HN Plug, Male Pin 50 Ohms
