DF-G2-PS-Q5

Active

BANNER ENGINEERING

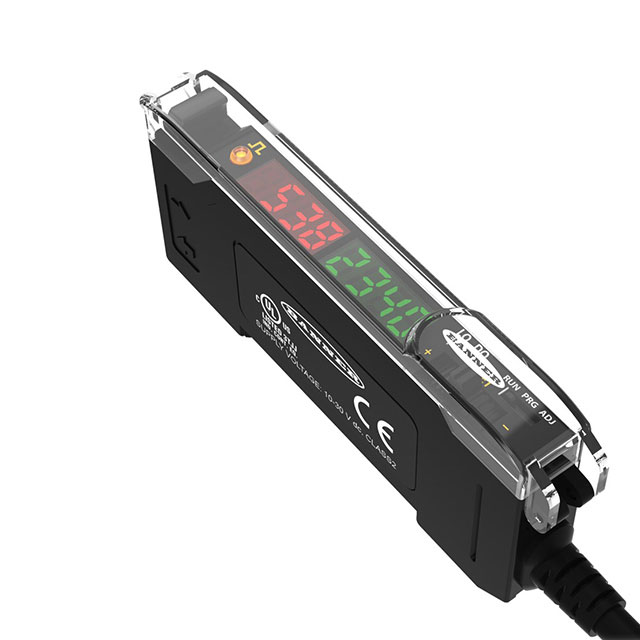

DF-G2 RED BEAM HIGH SPEED DUAL DISPLAY FIBER AMPLIFIER

Search across all available documentation for this part.

Active

BANNER ENGINEERING

DF-G2 RED BEAM HIGH SPEED DUAL DISPLAY FIBER AMPLIFIER

Technical Specifications

Parameters and characteristics for this part

Specification	DF-G2-PS-Q5

Amplifier Type	Fiber Amp
Mounting Type	DIN Rail
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Output Type	PNP
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Current - Supply	Amplifier Type	Mounting Type
BANNER ENGINEERING DF-G2-PC-2M	30 VDC	10 VDC	PNP	55 °C	-10 °C	40 mA	Fiber Amp	DIN Rail
BANNER ENGINEERING DF-G2-NC-Q5	30 VDC	10 VDC	NPN	55 °C	-10 °C	40 mA	Fiber Amp	DIN Rail
BANNER ENGINEERING DF-G2IR-PS-2M	30 VDC	10 VDC	PNP	55 °C	-10 °C	40 mA	Fiber Amp	DIN Rail
BANNER ENGINEERING DF-G2-PS-2M	30 VDC	10 VDC	PNP	55 °C	-10 °C		Fiber Amp	DIN Rail
BANNER ENGINEERING DF-G2-PS-9M	30 VDC	10 VDC	PNP	55 °C	-10 °C	40 mA	Fiber Amp	DIN Rail
BANNER ENGINEERING DF-G2-PS-Q5	30 VDC	10 VDC	PNP	55 °C	-10 °C		Fiber Amp	DIN Rail
BANNER ENGINEERING DF-G2-NS-2M	30 VDC	10 VDC	NPN	55 °C	-10 °C		Fiber Amp	DIN Rail
BANNER ENGINEERING DF-G2-KD-2M	30 VDC	10 VDC	PNP	55 °C	-10 °C	40 mA	Fiber Amp	DIN Rail
BANNER ENGINEERING DF-G2-KD-Q5	30 VDC	10 VDC	PNP	55 °C	-10 °C	40 mA	Fiber Amp	DIN Rail
BANNER ENGINEERING DF-G2-PC-Q3	30 VDC	10 VDC	PNP	55 °C	-10 °C	40 mA	Fiber Amp	DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 226.00
Newark	Each	1	$ 229.00

General part information

Fiber Amp Sensor Amplifier DIN Rail

Technical documentation and resources
