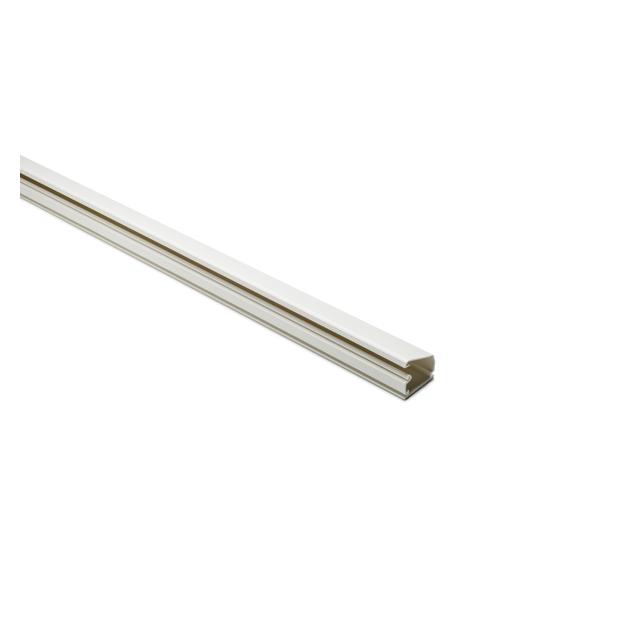

TSRP2FW-8A

Active

HELLERMANNTYTON

WIRE DUCTING & RACEWAYS OFF WHTT 1-1/4 DUCT 8 FT W/ADH

Search across all available documentation for this part.

Active

HELLERMANNTYTON

WIRE DUCTING & RACEWAYS OFF WHTT 1-1/4 DUCT 8 FT W/ADH

Technical Specifications

Parameters and characteristics for this part

Specification	TSRP2FW-8A

Color	Off, White
Features	Attached Latching Lid, Tamper Resistant, One-Piece Design, No Mounting Holes, Power Rated
Height [z]	0.774 "
Height [z]	19.66 mm
Length [x]	2.44 m
Length [x]	8 ft
Material	Poly-Vinyl Chloride (PVC)
Mounting Type	Adhesive, Screw
Width [y]	31.75 mm
Width [y]	1.25 in
Wire Duct Type	Single Channel, Solid (Raceway)

Wire Ducting & Raceways OFF WHTT 1-1/4 DUCT 8 FT W/ADH

Part	Width [y]	Width [y]	Length [x]	Length [x]	Color	Wire Duct Type	Features	Height [z]	Height [z]	Material	Mounting Type	Accessory Type	For Use With/Related Products
HELLERMANNTYTON TSRP2FW-8A	31.75 mm	1.25 in	2.44 m	8 ft	Off White	Single Channel Solid (Raceway)	Attached Latching Lid No Mounting Holes One-Piece Design Power Rated Tamper Resistant	0.774 "	19.66 mm	Poly-Vinyl Chloride (PVC)	Adhesive Screw
HELLERMANNTYTON TSRP2FW-14					Off White							Fitting - Splice Cover	TSRP2 1-1/4" Power Rated Surface Raceway
HELLERMANNTYTON TSRP2FW-33-1					Off White							Fitting - Inside Corner	TSRP2 1-1/4" Power Rated Surface Raceway
HELLERMANNTYTON TSRP2FW-25-1					Off White							Fitting - Cover Right Angle (R/A)	TSRP2 1-1/4" Power Rated Surface Raceway
HELLERMANNTYTON TSRP2FW-21-1					Off White							Fitting - Tee Base/Cover	TSRP2 1-1/4" Power Rated Surface Raceway

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Wire Ducting & Raceways OFF WHTT 1-1/4 DUCT 8 FT W/ADH

Technical documentation and resources
