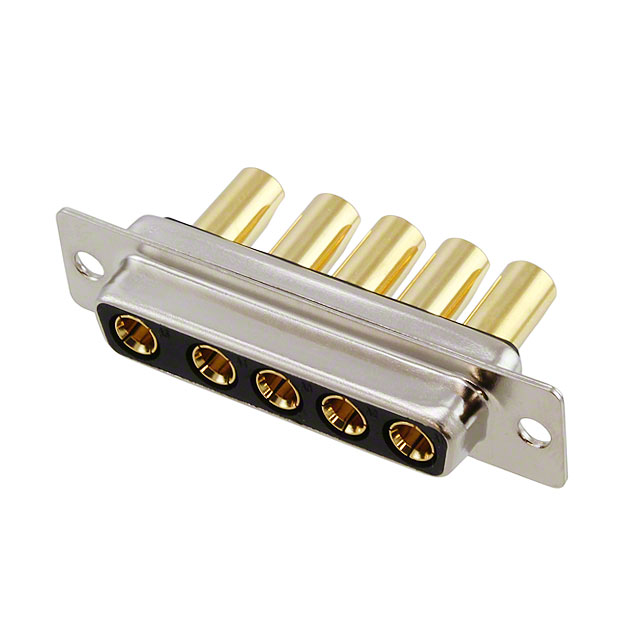

680M5W5203L401

Active

MH Connectors

COMBO D-SUB CONN, RCPT, DB-5W5, CABLE ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

MH Connectors

COMBO D-SUB CONN, RCPT, DB-5W5, CABLE ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	680M5W5203L401

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	40 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Number of Positions [custom]	5
Number of Rows	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	5W5
Shell Size, Connector Layout	3

Part	Connector Style	Shell Material, Finish	Flange Feature	Contact Finish Thickness	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Dielectric Material	Current Rating (Amps)	Color	Contact Material	Shell Size, Connector Layout	Shell Size, Connector Layout	Contact Finish	Number of Positions [custom]	Connector Type	Contact Type
MH Connectors 680M5W5203L211	Combo D-Sub	Nickel Plated Steel	Cable Side	Flash	UL94 V-0	-55 °C	125 °C	1	Polybutylene Terephthalate (PBT)	20 A	Black	Copper Alloy	5W5	3	Gold	5	Receptacle Female Sockets	Power
MH Connectors 680M5W5203L401	Combo D-Sub	Nickel Plated Steel	Housing/Shell (Unthreaded)	Flash	UL94 V-0	-55 °C	155 °C	1	Polybutylene Terephthalate (PBT)	40 A	Black	Copper Alloy	5W5	3	Gold	5	Receptacle Female Sockets	Power

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 (Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
