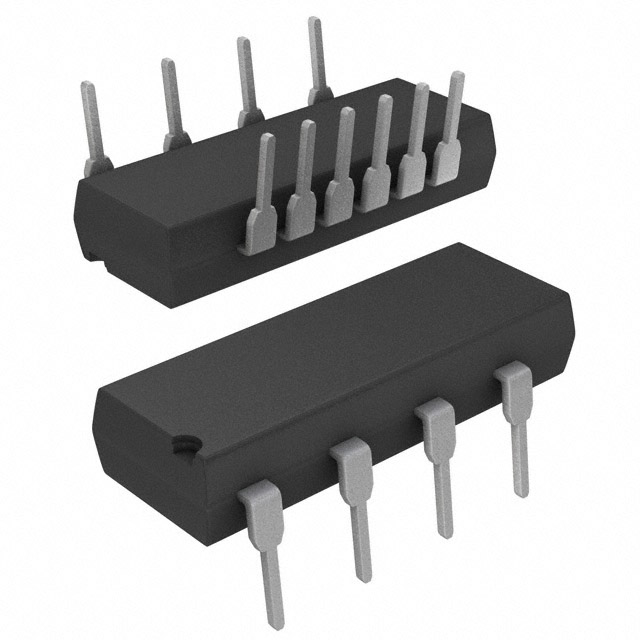

VO3526

Obsolete

Vishay General Semiconductor - Diodes Division

OPTOISOLTR 5.3KV PWR TRIAC 10DIP

Search across all available documentation for this part.

Obsolete

Vishay General Semiconductor - Diodes Division

OPTOISOLTR 5.3KV PWR TRIAC 10DIP

Technical Specifications

Parameters and characteristics for this part

Specification	VO3526

Approval Agency	UR, cUR, VDE
Current - DC Forward (If) (Max)	50 mA
Current - Hold (Ih)	25 mA
Current - LED Trigger (Ift) (Max) [Max]	10 mA
Mounting Type	Through Hole
Number of Channels	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	0.3 in, 10 Leads
Package / Case	16-DIP
Package / Case	7.62 mm
Static dV/dt (Min) [Min]	210 V/µs
Supplier Device Package	10-DIP
Voltage - Forward (Vf) (Typ) [Max]	1.4 V
Voltage - Isolation	5300 Vrms
Voltage - Off State	600 V
Zero Crossing Circuit	False

Part	Current - Hold (Ih)	Voltage - Forward (Vf) (Typ) [Max]	Number of Channels	Package / Case	Package / Case	Package / Case	Current - LED Trigger (Ift) (Max) [Max]	Supplier Device Package	Voltage - Isolation	Voltage - Off State	Zero Crossing Circuit	Approval Agency	Static dV/dt (Min) [Min]	Current - DC Forward (If) (Max)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
Vishay General Semiconductor - Diodes Division VO3526	25 mA	1.4 V	1	0.3 in 10 Leads	16-DIP	7.62 mm	10 mA	10-DIP	5300 Vrms	600 V		cUR UR VDE	210 V/µs	50 mA	Through Hole	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Optoisolator Triac, Power Output 5300Vrms 1 Channel 10-DIP
