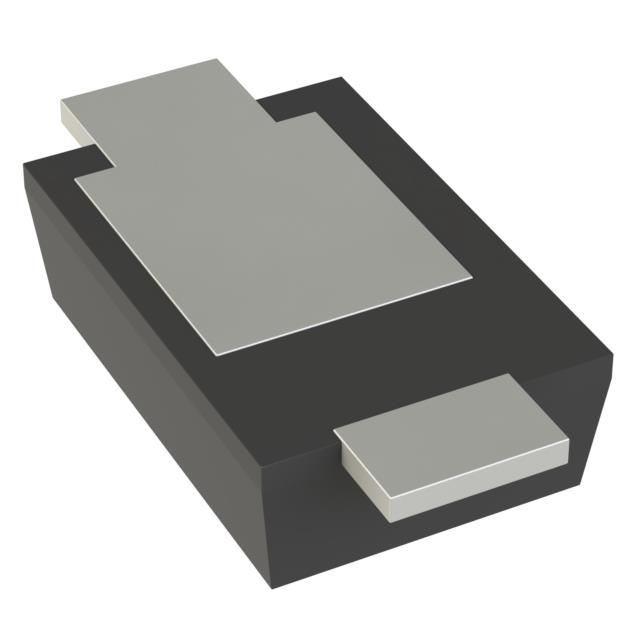

SMD34HE1-TP

Active

Micro Commercial Components

DIODE SCHOTTKY 40V 3A SOD123HE1

Search across all available documentation for this part.

Active

Micro Commercial Components

DIODE SCHOTTKY 40V 3A SOD123HE1

Technical Specifications

Parameters and characteristics for this part

Specification	SMD34HE1-TP

Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	50 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOD-123H
Speed	200 mA, 500 ns
Supplier Device Package	SOD-123HE1
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If	520 mV

Part	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Package / Case	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Technology	Mounting Type	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package
Micro Commercial Components SMD34HE1-TP	520 mV	3 A	50 µA	SOD-123H	-55 °C	125 °C	Schottky	Surface Mount	200 mA 500 ns	40 V	SOD-123HE1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 40 V 3A Surface Mount SOD-123HE1
