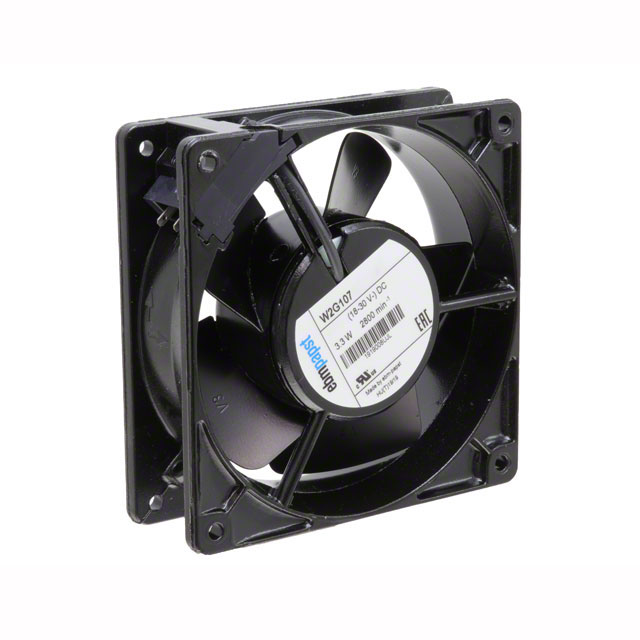

W2G107-AD03-02

Active

ebm-papst Inc.

FAN AXIAL 119X38MM 24VDC TERM

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 119X38MM 24VDC TERM

Technical Specifications

Parameters and characteristics for this part

Specification	W2G107-AD03-02

Approval Agency	EAC, UL
Bearing Type	Ball
Fan Type	Tubeaxial
Ingress Protection	IP22
Material - Blade	Steel
Material - Frame	Aluminum
Operating Temperature [Max] [custom]	72 °C
Operating Temperature [Max] [custom]	162 °F
Operating Temperature [Min] [custom]	-13 °F
Operating Temperature [Min] [custom]	-25 °C
Power (Watts)	3.3 W
RPM	2800 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Termination	2 Terminals
Voltage - Rated	24 VDC
Voltage Range [Max]	30 V
Voltage Range [Min]	18 VDC
Width [y]	38 mm

Part	Width [y]	RPM	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Approval Agency	Termination	Material - Frame	Fan Type	Material - Blade	Bearing Type	Size / Dimension [y]	Size / Dimension [x]	Ingress Protection	Voltage Range [Min]	Voltage Range [Max]	Voltage - Rated	Power (Watts)
ebm-papst Inc. W2G107-AD03-02	38 mm	2800 RPM	72 °C	-13 °F	162 °F	-25 °C	EAC UL	2 Terminals	Aluminum	Tubeaxial	Steel	Ball	119 mm	119 mm	IP22	18 VDC	30 V	24 VDC	3.3 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 119mm L x 119mm H Ball 2 Terminals
