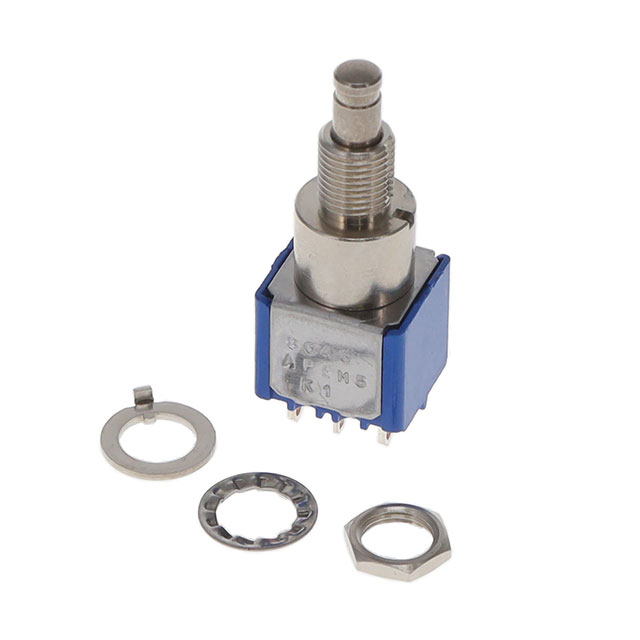

8646ABUL
ActiveAPEM
SWITCH PUSHBUTTON DPDT 6A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8646ABUL
ActiveAPEM
SWITCH PUSHBUTTON DPDT 6A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8646ABUL |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Plunger for Cap |
| Circuit | DPDT |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 4 A, 6 A |
| Electrical Life | 30000 Cycles |
| Features | Epoxy Sealed Terminals |
| Mounting Type | Panel Mount, Rear |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Panel Cutout Dimensions [diameter] | 6.5 mm |
| Switch Function | On-On |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.06 | |
| 10 | $ 19.04 | |||
| 25 | $ 17.95 | |||
| 50 | $ 17.17 | |||
| 100 | $ 16.42 | |||
| 250 | $ 15.47 | |||
| 500 | $ 14.79 | |||
Description
General part information
8646 Series
Pushbutton Switch DPDT Standard Panel Mount, Rear
