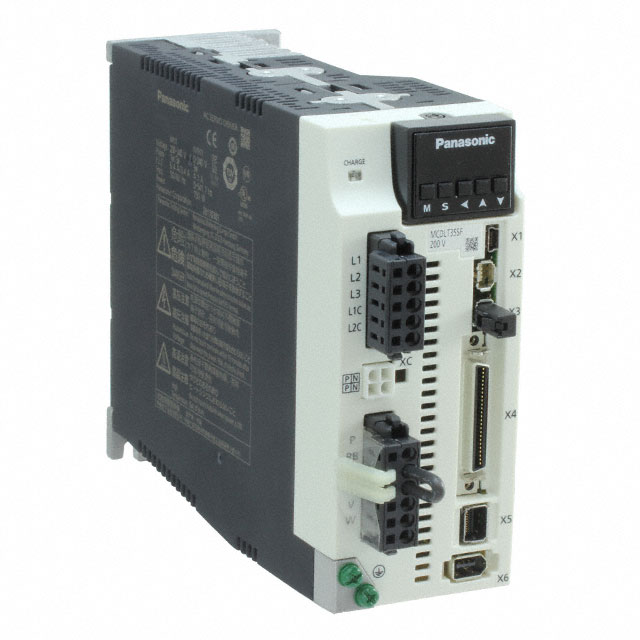

MCDLT35SF

Active

Panasonic Industrial Automation Sales

SERVO DRIVE A6 RS485 22A 200V W/

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

SERVO DRIVE A6 RS485 22A 200V W/

Technical Specifications

Parameters and characteristics for this part

Specification	MCDLT35SF

Control / Drive Type	Servo AC
Current - Output	22 A
For Use With/Related Products	MINAS A6 Series
Interface	USB, RS-485, RS-232
Motor Type	Servo
Mounting Type	Chassis Mount
Type	Module
Voltage - Load	200 V
Voltage - Supply	200 VAC
Wattage - Load	750 W

Part	Control / Drive Type	Current - Output	Type	Voltage - Load	Interface	Motor Type	For Use With/Related Products	Voltage - Supply	Wattage - Load	Mounting Type
Panasonic Industrial Automation Sales MCDLT31SF	Servo AC	22 A	Module	100 V	RS-232 RS-485 USB	Servo	MINAS A6 Series	100 VAC	400 W	Chassis Mount
Panasonic Industrial Automation Sales MCDLT31NF	Servo AC	22 A	Module	100 V	RTEX	Servo	MINAS A6 Series	100 VAC	400 W	Chassis Mount
Panasonic Industrial Automation Sales MCDLT35SF	Servo AC	22 A	Module	200 V	RS-232 RS-485 USB	Servo	MINAS A6 Series	200 VAC	750 W	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Servo AC 200VAC Supply 22A 200V Load

Technical documentation and resources

No documents available
