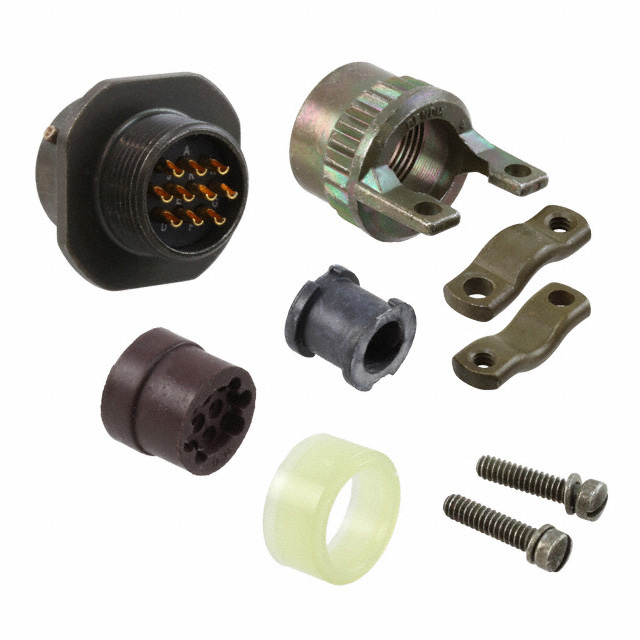

PT01E-12-10P(SR)

Active

Amphenol Industrial Operations

CONN RCPT MALE 10P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 10-101949-010

PT01E-12-10P(SR)

Active

Amphenol Industrial Operations

CONN RCPT MALE 10P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet 10-101949-010

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PT01E-12-10P(SR)

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Backshell Material, Plating	Olive Drab Cadmium, Aluminum
Cable Opening [custom]	7.92 mm
Cable Opening [custom]	0.312 in
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Features	Backshell, Strain Relief, Cable Clamp
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shielding	Unshielded

PT01E Series

Part	Features	Ingress Protection	Connector Type	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Shell Finish	Applications	Number of Positions	Primary Material	Insert Material	Shell Material	Fastening Type	Qualification	Contact Finish - Mating	Contact Material	Mounting Type	Color	Shielding	Backshell Material, Plating	Cable Opening [custom]	Cable Opening [custom]	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Voltage Rating
Amphenol Industrial Operations PT01E-10-6PW	Backshell	Environment Resistant	Male Pins Receptacle	10-6	-55 °C	125 °C	W	Olive Drab Chromate over Cadmium	Aerospace Industrial Instrumentation Mass Transit Military	6	Metal	Neoprene	Aluminum	Bayonet Lock	MIL-DTL-26482 Series I	Gold	Copper Alloy	Free Hanging (In-Line)	Olive Drab	Unshielded	Aluminum Olive Drab Cadmium
Amphenol Industrial Operations PT01E-10-6P	Backshell	Environment Resistant	Male Pins Receptacle	10-6	-55 °C	125 °C	N	Olive Drab Chromate over Cadmium	Aerospace Industrial Instrumentation Mass Transit Military	6	Metal	Neoprene	Aluminum	Bayonet Lock	MIL-DTL-26482 Series I	Gold	Copper Alloy	Free Hanging (In-Line)	Olive Drab	Unshielded	Aluminum Olive Drab Cadmium
Amphenol Industrial Operations PT01E-10-6P(SR)	Backshell Cable Clamp Strain Relief	Environment Resistant	Male Pins Receptacle	10-6	-55 °C	125 °C	N	Olive Drab Chromate over Cadmium	Aerospace Industrial Instrumentation Mass Transit Military	6	Metal	Neoprene	Aluminum	Bayonet Lock	MIL-DTL-26482 Series I	Gold	Copper Alloy	Free Hanging (In-Line)	Olive Drab	Unshielded	Aluminum Olive Drab Cadmium	4.78 mm	0.188 in
Amphenol Industrial Operations PT01E-12-3PY(SR)	Backshell Cable Clamp Strain Relief	Environment Resistant	Male Pins Receptacle	12-3	-55 °C	125 °C	Y	Olive Drab Chromate over Cadmium	Aerospace Industrial Instrumentation Mass Transit Military		Metal	Neoprene	Aluminum	Bayonet Lock	MIL-DTL-26482 Series I	Gold	Copper Alloy	Free Hanging (In-Line)	Olive Drab	Unshielded	Aluminum Olive Drab Cadmium	7.92 mm	0.312 in
Amphenol Industrial Operations PT01E-12-10P(SR)	Backshell Cable Clamp Strain Relief	Environment Resistant	Male Pins Receptacle		-55 °C	125 °C	N	Olive Drab Chromate over Cadmium	Aerospace Industrial Instrumentation Mass Transit Military	10	Metal	Neoprene	Aluminum	Bayonet Lock	MIL-DTL-26482 Series I	Gold	Copper Alloy	Free Hanging (In-Line)	Olive Drab	Unshielded	Aluminum Olive Drab Cadmium	7.92 mm	0.312 in
Amphenol Industrial Operations PT01E12-8P-SR	Backshell Cable Clamp Strain Relief	Environment Resistant	Male Pins Receptacle	12-8	-55 °C	125 °C	N	Olive Drab Chromate over Cadmium	Aerospace Communication Systems Industrial Instrumentation Mass Transit	8	Metal	Neoprene	Aluminum	Bayonet Lock	MIL-DTL-26482 Series I	Gold	Copper Alloy	Free Hanging (In-Line)	Olive Drab	Unshielded	Aluminum Olive Drab Cadmium	7.92 mm	0.312 in
Amphenol Industrial Operations PT01E14-12P-476	Backshell Cable Clamp	Environment Resistant	Male Pins Receptacle	14-12	-55 °C	125 °C	N	Black Zinc Cobalt	Aerospace Communication Systems Industrial Instrumentation Mass Transit	12	Metal	Neoprene	Aluminum	Bayonet Lock	MIL-DTL-26482 Series I	Gold	Copper Alloy	Free Hanging (In-Line)	Black	Unshielded	Aluminum Black Zinc Cobalt
Amphenol Industrial Operations PT01E20-41S-SR	Backshell Cable Clamp Strain Relief	Environment Resistant	Receptacle Female Sockets		-55 °C	125 °C	N	Olive Drab Chromate over Cadmium	Aerospace Communication Systems Industrial Instrumentation Mass Transit	41	Metal	Neoprene	Aluminum	Bayonet Lock	MIL-DTL-26482 Series I	Gold	Copper Alloy	Free Hanging (In-Line)	Olive Drab	Unshielded	Aluminum Olive Drab Cadmium	15.88 mm	0.625 in	20	41	600 VAC
Amphenol Industrial Operations PT01E-12-10S(SR)	Backshell Cable Clamp Strain Relief	Environment Resistant	Receptacle Female Sockets		-55 °C	125 °C	N	Olive Drab Chromate over Cadmium	Aerospace Industrial Instrumentation Mass Transit Military	10	Metal	Neoprene	Aluminum	Bayonet Lock	MIL-DTL-26482 Series I	Gold	Copper Alloy	Free Hanging (In-Line)	Olive Drab	Unshielded	Aluminum Olive Drab Cadmium	7.92 mm	0.312 in
Amphenol Industrial Operations PT01E16-8S-SR	Backshell Cable Clamp Strain Relief	Environment Resistant	Receptacle Female Sockets		-55 °C	125 °C	N	Olive Drab Chromate over Cadmium	Aerospace Communication Systems Industrial Instrumentation Mass Transit	8	Metal	Neoprene	Aluminum	Bayonet Lock	MIL-DTL-26482 Series I	Gold	Copper Alloy	Free Hanging (In-Line)	Olive Drab	Unshielded	Aluminum Olive Drab Cadmium	12.7 mm	0.5 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 52.95
		10	$ 48.59
		25	$ 46.72
		50	$ 45.17
		100	$ 42.67

Description

General part information

PT01E Series

10 Position Circular Connector Receptacle, Male Pins Solder Cup
