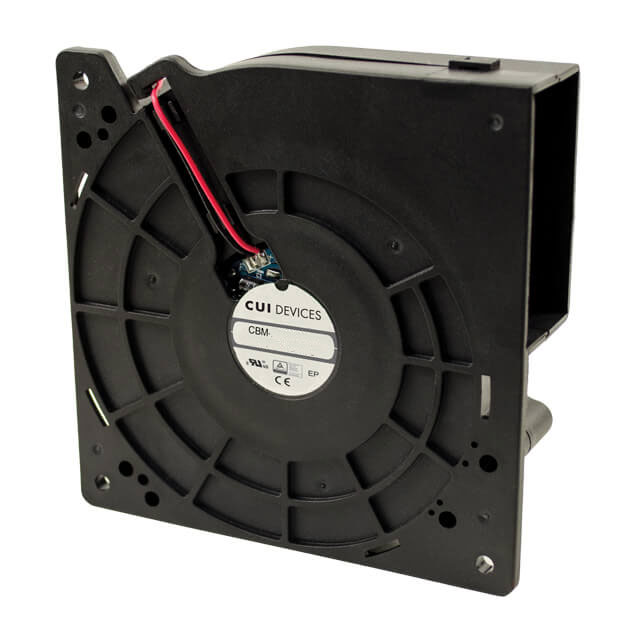

CBM-A232B-125

Active

CUI Devices

FAN BLOWER 120X32MM 12VDC WIRE

Search across all available documentation for this part.

Active

CUI Devices

FAN BLOWER 120X32MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	CBM-A232B-125

Air Flow	1.01 m³/min
Air Flow	35.9 CFM
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	0.82 A
Fan Type	Blower
Features	Auto Restart
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	53.8 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	9.8 W
RPM	2500 RPM
Size / Dimension	Square/Rounded
Size / Dimension [x]	120 mm
Size / Dimension [z]	120 mm
Static Pressure	221.7 Pa
Static Pressure	0.89 in H2O
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	6 VDC
Weight	0.553 lb
Weight	250.84 g
Width [y]	32 mm

Part	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Lifetime @ Temp.	Noise	RPM	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Features	Width [y]	Weight	Weight	Termination	Voltage - Rated	Power (Watts)	Approval Agency	Static Pressure	Static Pressure	Fan Type	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]	Bearing Type	Material - Blade
CUI Devices CBM-A232B-125	1.01 m³/min	35.9 CFM	70 °C	70 °C	-10 °C	-10 °C	70000 Hrs	53.8 dB(A)	2500 RPM	13.8 VDC	6 VDC	0.82 A	Auto Restart	32 mm	0.553 lb	250.84 g	2 Wire Leads	12 VDC	9.8 W	CE cURus TUV	221.7 Pa	0.89 in H2O	Blower	Square/Rounded	120 mm	120 mm	Ball	Polybutylene Terephthalate (PBT)
CUI Devices CBM-A232B-121	0.879 m³/min	31.4 CFM	70 °C	70 °C	-10 °C	-10 °C	70000 Hrs	49.6 dB(A)	2100 RPM	13.8 VDC	6 VDC	450 mA	Auto Restart	32 mm	0.553 lb	250.84 g	2 Wire Leads	12 VDC	5.4 W	CE cURus TUV	159.4 Pa	0.64 in H2O	Blower	Square/Rounded	120 mm	120 mm	Ball	Polybutylene Terephthalate (PBT)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2992	$ 20.50

General part information

Fan Blower 12VDC Square/Rounded - 120mm L x 120mm H Ball 35.9 CFM (1.01m³/min) 2 Wire Leads
