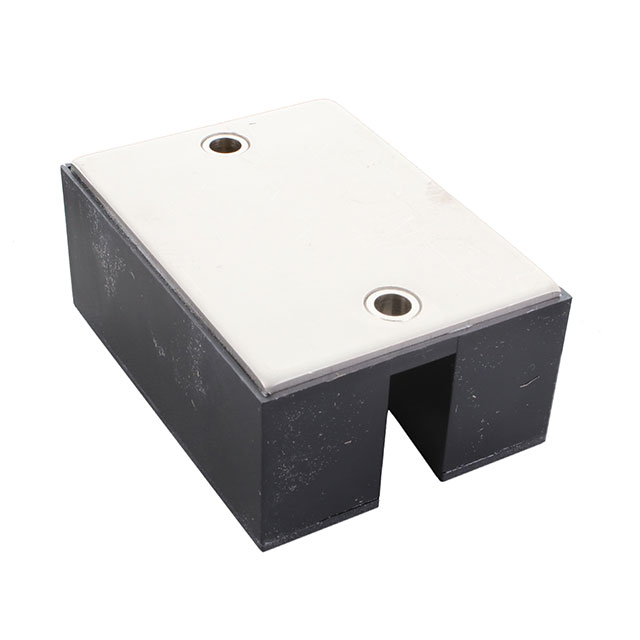

VBO105-16NO7

Obsolete

IXYS

BRIDGE RECT 1P 1.6KV 107A PWS-C

Search across all available documentation for this part.

Obsolete

IXYS

BRIDGE RECT 1P 1.6KV 107A PWS-C

Technical Specifications

Parameters and characteristics for this part

Specification	VBO105-16NO7

Current - Average Rectified (Io)	107 A
Current - Reverse Leakage @ Vr	300 µA
Diode Type	Single Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	PWS-C
Supplier Device Package	PWS-C
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.6 V
Voltage - Peak Reverse (Max)	1.6 kV

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Supplier Device Package	Technology	Current - Average Rectified (Io)	Diode Type	Current - Reverse Leakage @ Vr	Voltage - Peak Reverse (Max) [Max]	Package / Case	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max)
IXYS VBO105-18NO7	150 °C	-40 °C	Chassis Mount	PWS-C	Standard	107 A	Single Phase	300 µA	1.8 kV	PWS-C	1.6 V
IXYS VBO105-12NO7	150 °C	-40 °C	Chassis Mount	PWS-C	Standard	107 A	Single Phase	100 µA	1.2 kV	PWS-C	1.09 V
IXYS VBO105-14NO7	150 °C	-40 °C	Chassis Mount	PWS-C	Standard	107 A	Single Phase	300 µA	1.4 kV	PWS-C	1.6 V
IXYS VBO105-16NO7	150 °C	-40 °C	Chassis Mount	PWS-C	Standard	107 A	Single Phase	300 µA		PWS-C	1.6 V	1.6 kV
IXYS VBO105-08NO7	150 °C	-40 °C	Chassis Mount	PWS-C	Standard	107 A	Single Phase	100 µA	800 V	PWS-C	1.09 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Standard 1.6 kV Chassis Mount PWS-C
