181-11004
ActiveHELLERMANNTYTON

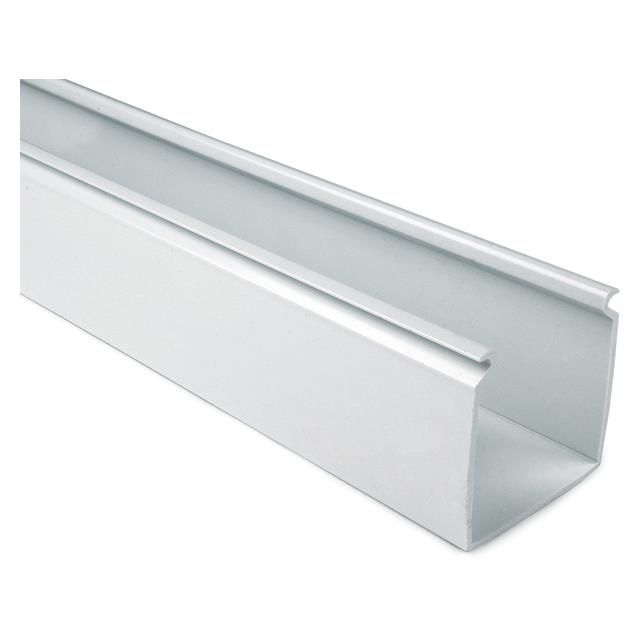

SOLID WALL WIRING DUCT, 1" X 1", NON-ADHESIVE, PVC, WHITE, 30FT/BOX
Deep-Dive with AI
Search across all available documentation for this part.
181-11004
ActiveHELLERMANNTYTON
SOLID WALL WIRING DUCT, 1" X 1", NON-ADHESIVE, PVC, WHITE, 30FT/BOX
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 181-11004 |
|---|---|
| Color | White |
| Features | Pre-Punched Mounting Holes, Self Extinguishing |
| Height [z] | 25.5 mm |
| Height [z] | 1.004 in |
| Length | 6 ft |
| Length | 1.83 m |
| Material | Poly-Vinyl Chloride (PVC) |
| Mounting Type | Screw |
| Width | 25.4 mm |
| Width [x] | 1 in |
181-11 Series
| Part | Height [z] | Height [z] | Material | Width | Width [x] | Color | Length | Length | Mounting Type | Wire Duct Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|
HELLERMANNTYTON | 1.506 in | 38.25 mm | Poly-Vinyl Chloride (PVC) | 25.4 mm | 1 in | Gray | 6 ft | 1.83 m | Screw | Base Slotted (Raceway) | Pre-Punched Mounting Holes Self Extinguishing |
HELLERMANNTYTON | 1.506 in | 38.25 mm | Poly-Vinyl Chloride (PVC) | 25.4 mm | 1 in | White | 6 ft | 1.83 m | Screw | Pre-Punched Mounting Holes Self Extinguishing | |
HELLERMANNTYTON | 1.06 in | 26.92 mm | Poly-Vinyl Chloride (PVC) | 25.4 mm | 1 in | Black | 6 ft | 1.83 m | Adhesive | Pre-Punched Mounting Holes Self Extinguishing | |
HELLERMANNTYTON | 1.004 in | 25.5 mm | Poly-Vinyl Chloride (PVC) | 25.4 mm | 1 in | Gray | 6 ft | 1.83 m | Screw | Pre-Punched Mounting Holes Self Extinguishing | |
HELLERMANNTYTON | 1.004 in | 25.5 mm | Poly-Vinyl Chloride (PVC) | 25.4 mm | 1 in | Gray | 6 ft | 1.83 m | Adhesive Screw | Base Slotted (Raceway) | Pre-Punched Mounting Holes Self Extinguishing |
HELLERMANNTYTON | 1.004 in | 25.5 mm | Poly-Vinyl Chloride (PVC) | 25.4 mm | 1 in | White | 6 ft | 1.83 m | Screw | Pre-Punched Mounting Holes Self Extinguishing | |
HELLERMANNTYTON | 1.506 in | 38.25 mm | Poly-Vinyl Chloride (PVC) | 25.4 mm | 1 in | Gray | 6 ft | 1.83 m | Adhesive Screw | Base Slotted (Raceway) | Pre-Punched Mounting Holes Self Extinguishing |
HELLERMANNTYTON | 1.506 in | 38.25 mm | Poly-Vinyl Chloride (PVC) | 25.4 mm | 1 in | White | 6 ft | 1.83 m | Screw | Base Slotted (Raceway) | Pre-Punched Mounting Holes Self Extinguishing |
HELLERMANNTYTON | 1.004 in | 25.5 mm | Poly-Vinyl Chloride (PVC) | 25.4 mm | 1 in | White | 6 ft | 1.83 m | Screw | Pre-Punched Mounting Holes Self Extinguishing | |
HELLERMANNTYTON | 1.506 in | 38.25 mm | Poly-Vinyl Chloride (PVC) | 25.4 mm | 1 in | Gray | 6 ft | 1.83 m | Screw | Base Slotted (Raceway) | Pre-Punched Mounting Holes Self Extinguishing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
181-11 Series
Wire Duct White Solid (Raceway), Base Screw 6.00' (1.83m)
