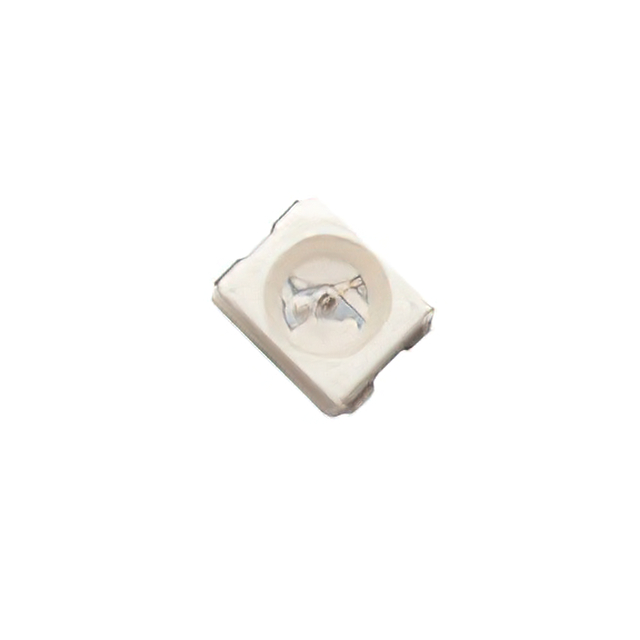

ASMT-SRB4-PW505
ObsoleteBroadcom Limited
LED RED CLEAR 4PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
ASMT-SRB4-PW505
ObsoleteBroadcom Limited
LED RED CLEAR 4PLCC SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASMT-SRB4-PW505 |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 50 mA |
| Height (Max) [Max] [z] | 2.1 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.2 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 2338 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-PLCC |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 4-PLCC |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength - Dominant | 624 nm |
| Wavelength - Peak | 631 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ASMT-SR Series
Red 624nm LED Indication - Discrete 2.2V 4-PLCC
Documents
Technical documentation and resources
No documents available
