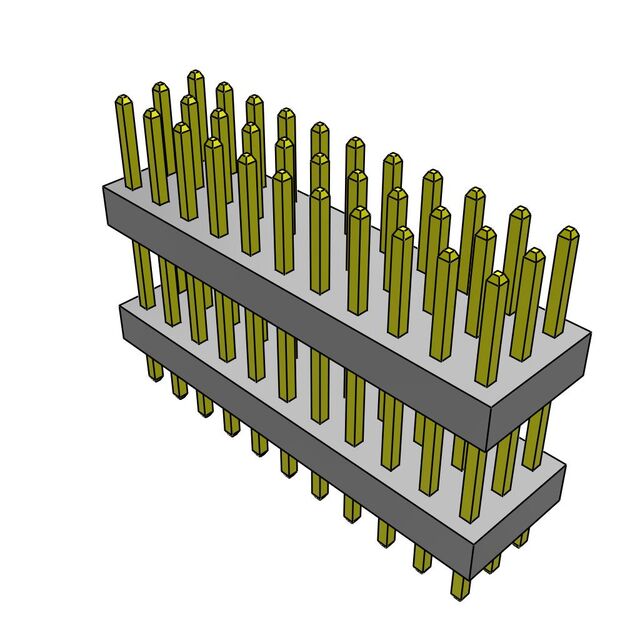

TW-11-10-L-T-338-105

Active

Samtec Inc.

CONN BRD STACK 2.00 33POS

Search across all available documentation for this part.

Active

Samtec Inc.

CONN BRD STACK 2.00 33POS

Technical Specifications

Parameters and characteristics for this part

Specification	TW-11-10-L-T-338-105

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin	0.614 in
Length - Overall Pin	15.596 mm
Length - Post (Mating) [x]	0.171 in
Length - Post (Mating) [x]	4.343 mm
Length - Stack Height [x]	8.585 mm
Length - Stack Height [x]	0.338 in
Length - Tail [x]	2.667 mm
Length - Tail [x]	0.105 in
Mounting Type	Through Hole
Number of Positions	33
Number of Rows	3
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Termination	Solder

Part	Length - Overall Pin	Length - Overall Pin	Length - Stack Height [x]	Length - Stack Height [x]	Row Spacing	Row Spacing	Length - Tail [x]	Length - Tail [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Contact Finish - Post (Mating)	Termination	Pitch [x]	Pitch [x]	Color	Number of Rows	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Number of Positions	Mounting Type	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. TW-11-10-L-D-390-100	0.614 in	15.596 mm	9.9 mm	0.39 in	2 mm	0.079 in	0.1 "	2.54 mm	0.25 Ám	10 Áin	Gold	Solder	0.079 in	2 mm	Black	2	3.15 mm	0.124 in	22 positions	Through Hole
Samtec Inc. TW-11-10-T-S-381-110	0.614 in	15.596 mm	9.677 mm	0.381 in			0.11 in	2.794 mm			Tin	Solder	0.079 in	2 mm	Black	1	3.124 mm	0.123 in	11	Through Hole
Samtec Inc. TW-11-10-L-T-338-105	0.614 in	15.596 mm	8.585 mm	0.338 in	2 mm	0.079 in	0.105 in	2.667 mm	0.25 Ám	10 Áin	Gold	Solder	0.079 in	2 mm	Black	3	4.343 mm	0.171 in	33	Through Hole
Samtec Inc. TW-11-10-S-D-413-079	0.614 in	15.596 mm			2 mm	0.079 in			0.76 µm	30 µin	Gold	Solder	0.079 in	2 mm	Black	2	3.099 mm	0.122 in	22 positions	Through Hole	0.413 in	10.49 mm
Samtec Inc. TW-11-10-S-D-394-090
Samtec Inc. TW-11-10-L-D-364-090	0.614 in	15.596 mm			2 mm	0.079 in	0.09 in	2.286 mm	0.25 Ám	10 Áin	Gold	Solder	0.079 in	2 mm	Black	2	4.064 mm	0.16 in	22 positions	Through Hole	0.364 in	9.246 mm
Samtec Inc. TW-11-10-L-D-180-175	0.614 in	15.596 mm	4.572 mm	0.18 in	2 mm	0.079 in	0.175 in	4.445 mm	0.25 Ám	10 Áin	Gold	Solder	0.079 in	2 mm	Black	2	6.579 mm	0.259 in	22 positions	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.54
