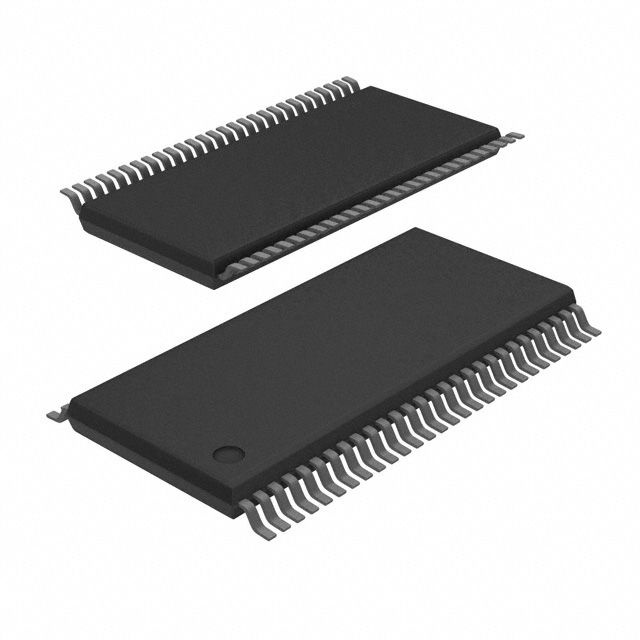

SN65LVDS94DGGR
ActiveTexas Instruments
IC LVDS SERDES RECEIVER 56-TSSOP
Deep-Dive with AI
Search across all available documentation for this part.
SN65LVDS94DGGR
ActiveTexas Instruments
IC LVDS SERDES RECEIVER 56-TSSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SN65LVDS94DGGR |
|---|---|
| Data Rate | 1.904 Gbps |
| Function | Deserializer |
| Input Type | LVDS |
| Mounting Type | Surface Mount |
| Number of Inputs | 4 |
| Number of Outputs | 28 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | LVTTL |
| Package / Case | 6.1 mm |
| Package / Case | 0.24 in |
| Package / Case | 56-TFSOP |
| Supplier Device Package | 56-TSSOP |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.58 | |
| 10 | $ 7.75 | |||
| 25 | $ 7.39 | |||
| 100 | $ 6.42 | |||
| 250 | $ 6.13 | |||
| 500 | $ 5.59 | |||
| 1000 | $ 4.87 | |||
| Digi-Reel® | 1 | $ 8.58 | ||
| 10 | $ 7.75 | |||
| 25 | $ 7.39 | |||
| 100 | $ 6.42 | |||
| 250 | $ 6.13 | |||
| 500 | $ 5.59 | |||
| 1000 | $ 4.87 | |||
| Tape & Reel (TR) | 2000 | $ 4.69 | ||
Description
General part information
65LVDS94 Series
1.904Gbps Deserializer 4 Input 28 Output 56-TSSOP
Documents
Technical documentation and resources
No documents available
