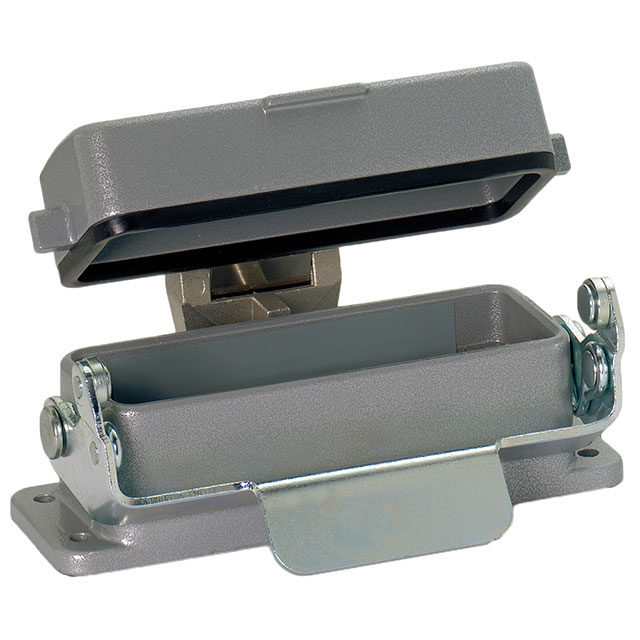

704440C0

Obsolete

LAPP

CONN BASE HA10 PNL MNT W/DC

Search across all available documentation for this part.

Obsolete

LAPP

CONN BASE HA10 PNL MNT W/DC

Technical Specifications

Parameters and characteristics for this part

Specification	704440C0

Connector Type	Base - Box Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	HA10
Size / Dimension [x]	81 mm
Size / Dimension [x]	3.189 in
Size / Dimension [y]	29.5 mm
Size / Dimension [y]	1.161 "
Size / Dimension [z]	25 mm
Size / Dimension [z]	0.984 in
Style	Bottom Entry

Part	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Housing Color	Style	Housing Material	Connector Type	Size	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Ingress Protection	Housing Finish
LAPP 704440C0	125 °C	-40 °C	Locking Clip (1) on Base Bottom	Gray	Bottom Entry	Aluminum Alloy	Base - Box Mount	HA10	29.5 mm	81 mm	1.161 "	25 mm	3.189 in	0.984 in	IP65 - Dust Tight Water Resistant	Powder Coated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Base - Box Mount Connector Bottom Entry HA10 IP65 - Dust Tight, Water Resistant
