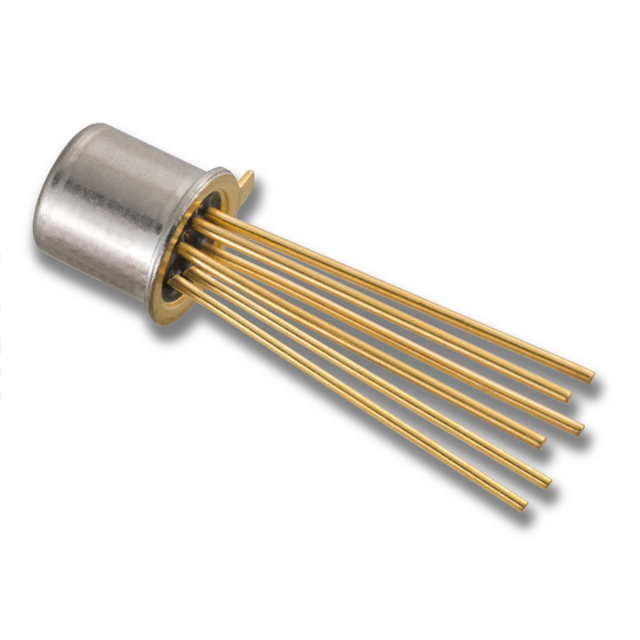

IT124 TO-71 6L ROHS

Active

Linear Integrated Systems, Inc.

HIGH VOLTAGE, SUPER BETA, MONOLI

Search across all available documentation for this part.

Active

Linear Integrated Systems, Inc.

HIGH VOLTAGE, SUPER BETA, MONOLI

Technical Specifications

Parameters and characteristics for this part

Specification	IT124 TO-71 6L ROHS

Current - Collector (Ic) (Max) [Max]	10 mA
Current - Collector Cutoff (Max)	100 pA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	1500
Frequency - Transition	100 MHz
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	TO-71-6 Metal Can
Power - Max [Max]	500 mW
Supplier Device Package	TO-71
Transistor Type	2 NPN (Dual)
Vce Saturation (Max) @ Ib, Ic	500 mV
Voltage - Collector Emitter Breakdown (Max)	2 V

Part	Frequency - Transition	Operating Temperature [Min]	Operating Temperature [Max]	Vce Saturation (Max) @ Ib, Ic	Voltage - Collector Emitter Breakdown (Max)	Mounting Type	Transistor Type	Current - Collector Cutoff (Max)	Supplier Device Package	Package / Case	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]
Linear Integrated Systems, Inc. IT124 TO-78 6L ROHS	100 MHz	-55 °C	150 °C	500 mV	2 V	Through Hole	2 NPN (Dual)	100 pA	TO-78-6	TO-78-6 Metal Can	500 mW	10 mA	1500
Linear Integrated Systems, Inc. IT124 TO-71 6L ROHS	100 MHz	-55 °C	150 °C	500 mV	2 V	Through Hole	2 NPN (Dual)	100 pA	TO-71	TO-71-6 Metal Can	500 mW	10 mA	1500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor Array 2 NPN (Dual) 2V 10mA 100MHz 500mW Through Hole TO-71
