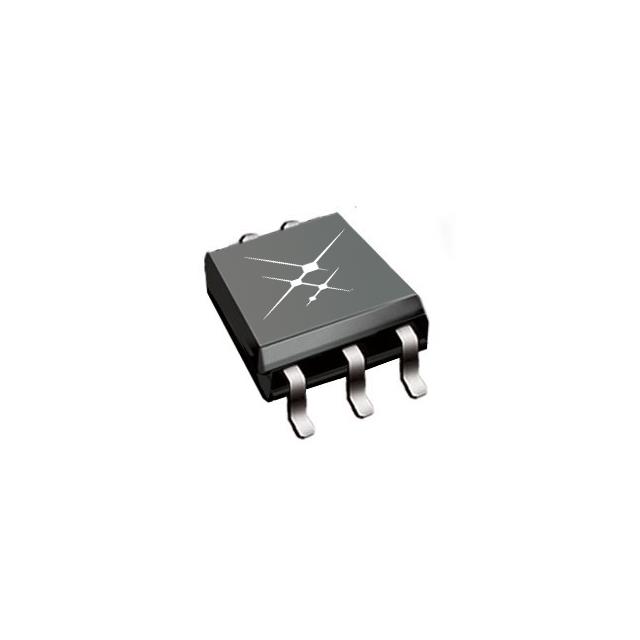

SI8540-B-FWR
ObsoleteSkyworks Solutions Inc.
IC CURR SENSE 1 CIRCUIT SOT23-5
Deep-Dive with AI
Search across all available documentation for this part.
SI8540-B-FWR
ObsoleteSkyworks Solutions Inc.
IC CURR SENSE 1 CIRCUIT SOT23-5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SI8540-B-FWR |
|---|---|
| Amplifier Type | Current Sense |
| Current - Output / Channel [custom] | 10 mA |
| Current - Supply | 90 µA |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Voltage - Supply Span (Max) [Max] | 36 V |
| Voltage - Supply Span (Min) [Min] | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.69 | |
| 5 | $ 1.42 | |||
| 10 | $ 1.32 | |||
| 25 | $ 1.20 | |||
| 50 | $ 1.11 | |||
| 100 | $ 1.03 | |||
| 500 | $ 0.87 | |||
| 1000 | $ 0.81 | |||
Description
General part information
SI8540 Series
Current Sense Amplifier 1 Circuit SOT-23-5
Documents
Technical documentation and resources
No documents available
