173,GY

Active

Serpac

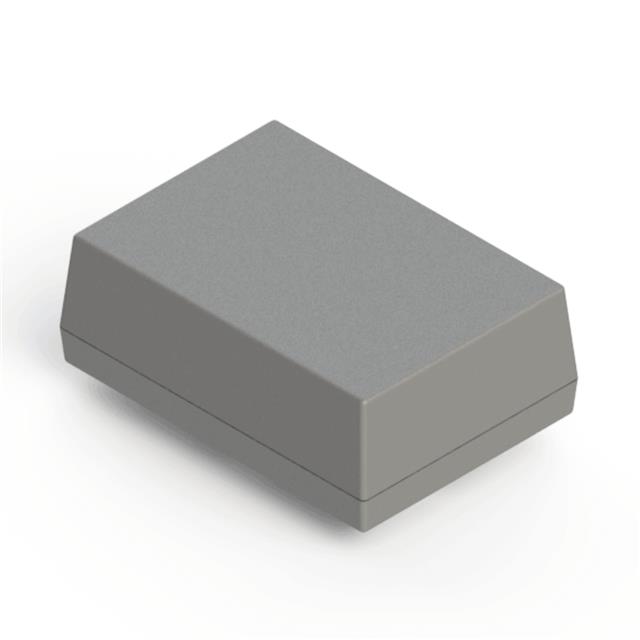

BOX ABS GRAY 6.88"L X 4.88"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 6.88"L X 4.88"W

Technical Specifications

Parameters and characteristics for this part

Specification	173,GY

Area (L x W)	33.6 in²
Area (L x W)	217 cm²
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Features	PCB Supports
Height [z]	63.5 mm
Height [z]	2.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	174.75 mm
Size / Dimension [x]	6.88 in
Size / Dimension [y]	123.95 mm
Size / Dimension [y]	4.88 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.5 lbs
Weight	226.8 g

Part	Ratings	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Design	Material Flammability Rating	Weight	Weight	Container Type	Thickness	Thickness	Material	Color
Serpac 173,GY	IP40 NEMA 1	63.5 mm	2.5 in	33.6 in²	217 cm²	PCB Supports	123.95 mm	174.75 mm	4.88 in	6.88 in	Hand Held Split Sides	UL94 HB	0.5 lbs	226.8 g	Box	2.54 mm	0.1 in	Plastic ABS	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Gray Hand Held, Split Sides 6.880" L x 4.880" W (174.75mm x 123.95mm) X 2.500" (63.50mm)

Technical documentation and resources

No documents available
