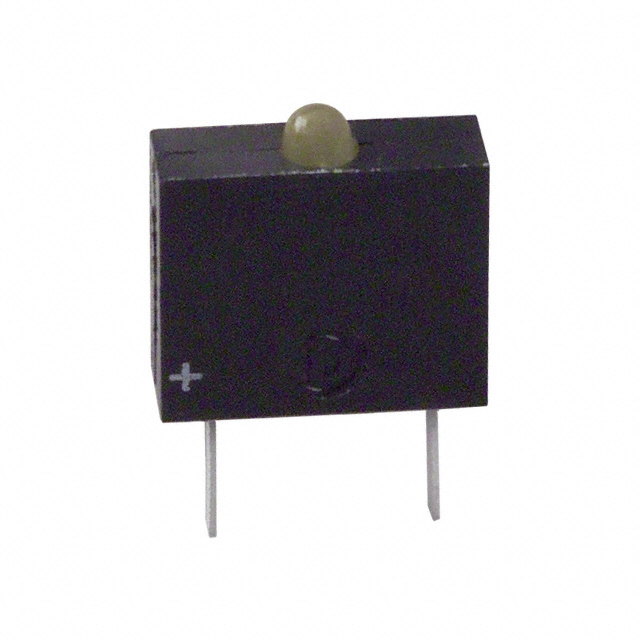

5553403F
ActiveDIALIGHT
LED CBI 2MM YELLOW TH PC MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5553403F
ActiveDIALIGHT
LED CBI 2MM YELLOW TH PC MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5553403F |
|---|---|
| Color | Yellow |
| Configuration | Single |
| Current | 4.7 mA |
| Lens Size [diameter] | 2 mm |
| Lens Style | Round with Domed Top |
| Lens Type | Clear |
| Millicandela Rating | 2.1 mcd |
| Mounting Type | Through Hole |
| Viewing Angle [custom] | 40 ° |
| Voltage Rating | 5 V |
| Wavelength - Peak | 583 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.90 | |
| 10 | $ 1.93 | |||
| 100 | $ 1.49 | |||
| 1000 | $ 1.16 | |||
| 5000 | $ 1.07 | |||
Description
General part information
5553403 Series
LED Circuit Board Indicator LED Circuit Board Indicator Single Yellow Clear 5V 4.7mA Round with Domed Top 2.00mm Dia Through Hole
