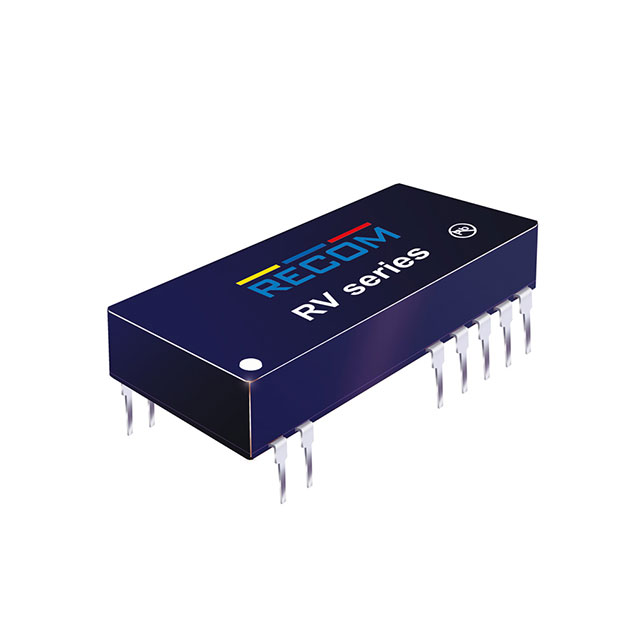

RV-2415D/P

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 2W DC/DC MIN 6KV UNREG 24VIN +/-15OUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

RV-2415D/P

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 2W DC/DC MIN 6KV UNREG 24VIN +/-15OUT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RV-2415D/P

Applications	ITE (Commercial), Medical
Current - Output (Max)	67 mA
Current - Output (Max)	67 mA
Efficiency	75 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-DIP Module, 14 Leads
Power (Watts)	2 W
Size / Dimension [x]	32.4 mm, 1.27 in
Size / Dimension [y]	14.7 mm, 0.58 in
Size / Dimension [z]	11.43 mm, 11.4 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	26.4 V
Voltage - Input (Min) [Min]	21.6 V
Voltage - Isolation	6000 V
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

RV-053.3 Series

Isolated DC/DC Converters - Through Hole 2W DC/DC MIN 8kV UNREG 12Vin +/-9Vout

Part	Features	Voltage - Input (Max) [Max]	Number of Outputs	Type	Voltage - Output 1	Package / Case	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Output (Max) [Max]	Power (Watts)	Applications	Efficiency	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Output 2	Efficiency [Min]	Efficiency [Max]	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
RECOM Power RV-2424S	SCP	26.4 V	1	Isolated Module	24 V	24-DIP Module 14 Leads	0.58 in 14.7 mm	11.4 mm 11.43 mm	1.27 in 32.4 mm	83 mA	2 W	ITE (Commercial) Medical	75 %	6000 V	85 °C	-40 °C	Through Hole	21.6 V
RECOM Power RV-2405D	SCP	26.4 V	2	Isolated Module	5 V	24-DIP Module 14 Leads	0.58 in 14.7 mm	11.4 mm 11.43 mm	1.27 in 32.4 mm		2 W	ITE (Commercial) Medical	75 %	6000 V	85 °C	-40 °C	Through Hole	21.6 V	-5 V
RECOM Power RV-053.3D/R6.4		5.5 V	2	Isolated Module	3.3 V	24-DIP Module 14 Leads	0.58 in 14.7 mm	11.4 mm 11.43 mm	1.27 in 32.4 mm		2 W	ITE (Commercial) Medical		6.4 kV	85 °C	-40 °C	Through Hole	4.5 V	-3.3 V	70 %	78 %	300 mA
RECOM Power RV-0509S/P/R8	SCP	5.5 V	1	Isolated Module	9 V	24-DIP Module 14 Leads	0.58 in 14.7 mm	11.4 mm 11.43 mm	1.27 in 32.4 mm	222 mA	2 W	ITE (Commercial) Medical	85 %	8 kV	85 °C	-40 °C	Through Hole	4.5 V
RECOM Power RV-093.3S/P	SCP	9.9 V	1	Isolated Module	3.3 V	24-DIP Module 14 Leads	0.58 in 14.7 mm	11.4 mm 11.43 mm	1.27 in 32.4 mm	600 mA	2 W	ITE (Commercial) Medical	75 %	6000 V	85 °C	-40 °C	Through Hole	8.1 V
RECOM Power RV-2415D/P	SCP	26.4 V	2	Isolated Module	15 V	24-DIP Module 14 Leads	0.58 in 14.7 mm	11.4 mm 11.43 mm	1.27 in 32.4 mm		2 W	ITE (Commercial) Medical	75 %	6000 V	85 °C	-40 °C	Through Hole	21.6 V	-15 V			67 mA	67 mA
RECOM Power RV-1512D/P/R8	SCP	16.5 V	2	Isolated Module	12 V	24-DIP Module 14 Leads	0.58 in 14.7 mm	11.4 mm 11.43 mm	1.27 in 32.4 mm		2 W	ITE (Commercial) Medical	86 %	8 kV	85 °C	-40 °C	Through Hole	13.5 V	-12 V			85 mA	85 mA
RECOM Power RV-0512D	SCP	5.5 V	2	Isolated Module	12 V	24-DIP Module 14 Leads	0.58 in 14.7 mm	11.4 mm 11.43 mm	1.27 in 32.4 mm		2 W	ITE (Commercial) Medical	75 %	6000 V	85 °C	-40 °C	Through Hole	4.5 V	-12 V				83 mA	83 mA
RECOM Power RV-2409S/P	SCP	26.4 V	1	Isolated Module	9 V	24-DIP Module 14 Leads	0.58 in 14.7 mm	11.4 mm 11.43 mm	1.27 in 32.4 mm	222 mA	2 W	ITE (Commercial) Medical	75 %	6000 V	85 °C	-40 °C	Through Hole	21.6 V
RECOM Power RV-0509S	SCP	5.5 V	1	Isolated Module	9 V	24-DIP Module 14 Leads	0.58 in 14.7 mm	11.4 mm 11.43 mm	1.27 in 32.4 mm	222 mA	2 W	ITE (Commercial) Medical	75 %	6000 V	85 °C	-40 °C	Through Hole	4.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	15	$ 21.19
Sager	N/A	1	$ 21.86
		5	$ 21.14
		10	$ 20.17
		25	$ 19.57
		50	$ 19.29
		100	$ 18.73
		250	$ 17.49
