Q-3804X000H.25M

Active

Amphenol Custom Cable

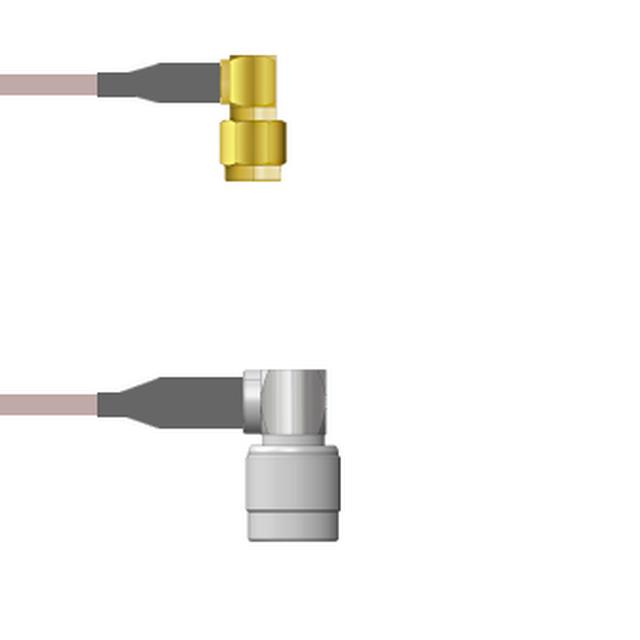

CBL ASSY SMA-TNC PLUG-PLG 9.843"

Deep-Dive with AI

Search across all available documentation for this part.

Q-3804X000H.25M

Active

Amphenol Custom Cable

CBL ASSY SMA-TNC PLUG-PLG 9.843"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3804X000H.25M

1st Connector	SMA Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-142
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	11 GHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	50 Ohms
Style	SMA to TNC

Q-3804X0 Series

Part	Style	Overall Impedance	1st Connector	Features	Connector Impedance	2nd Contact Gender	2nd Connector Mounting Type	Color	1st Contact Gender	2nd Connector	Length [x]	Length [x]	Cable Type	Cable Impedance	1st Connector Mounting Type	Frequency - Max [Max]	Length	Length	Length	Length [x]
Amphenol Custom Cable Q-3804X000H018I	SMA to TNC	50 Ohms	Right Angle SMA Plug	Shielded	50 Ohms	Male	Free Hanging (In-Line)	Copper	Male	TNC Plug Right Angle	457.2 mm	457.2 mm	RG-142	50 Ohms	Free Hanging (In-Line)	11 GHz
Amphenol Custom Cable Q-3804X000H003M	SMA to TNC	50 Ohms	Right Angle SMA Plug	Shielded	50 Ohms	Male	Free Hanging (In-Line)	Copper	Male	TNC Plug Right Angle			RG-142	50 Ohms	Free Hanging (In-Line)	11 GHz	3 m	118.1 in	9.8 '
Amphenol Custom Cable Q-3804X000H0.5M	SMA to TNC	50 Ohms	Right Angle SMA Plug	Shielded	50 Ohms	Male	Free Hanging (In-Line)	Copper	Male	TNC Plug Right Angle			RG-142	50 Ohms	Free Hanging (In-Line)	11 GHz	50 cm	19.69 "
Amphenol Custom Cable Q-3804X000H.75M	SMA to TNC	50 Ohms	Right Angle SMA Plug	Shielded	50 Ohms	Male	Free Hanging (In-Line)	Copper	Male	TNC Plug Right Angle			RG-142	50 Ohms	Free Hanging (In-Line)	11 GHz	750 mm	29.53 "
Amphenol Custom Cable Q-3804X000H.25M	SMA to TNC	50 Ohms	Right Angle SMA Plug	Shielded	50 Ohms	Male	Free Hanging (In-Line)	Copper	Male	TNC Plug Right Angle		250 mm	RG-142	50 Ohms	Free Hanging (In-Line)	11 GHz				9.843 "
Amphenol Custom Cable Q-3804X000H002M	SMA to TNC	50 Ohms	Right Angle SMA Plug	Shielded	50 Ohms	Male	Free Hanging (In-Line)	Copper	Male	TNC Plug Right Angle			RG-142	50 Ohms	Free Hanging (In-Line)	11 GHz	2 m	78.7 in	6.6 ft
Amphenol Custom Cable Q-3804X000H072I	SMA to TNC	50 Ohms	Right Angle SMA Plug	Shielded	50 Ohms	Male	Free Hanging (In-Line)	Copper	Male	TNC Plug Right Angle			RG-142	50 Ohms	Free Hanging (In-Line)	11 GHz	1.8 m	72 in	6 ft
Amphenol Custom Cable Q-3804X000H024I	SMA to TNC	50 Ohms	Right Angle SMA Plug	Shielded	50 Ohms	Male	Free Hanging (In-Line)	Copper	Male	TNC Plug Right Angle			RG-142	50 Ohms	Free Hanging (In-Line)	11 GHz	609.6 mm	24 "
Amphenol Custom Cable Q-3804X000H036I	SMA to TNC	50 Ohms	Right Angle SMA Plug	Shielded	50 Ohms	Male	Free Hanging (In-Line)	Copper	Male	TNC Plug Right Angle			RG-142	50 Ohms	Free Hanging (In-Line)	11 GHz	91.44 cm	36 in
Amphenol Custom Cable Q-3804X000H012I	SMA to TNC	50 Ohms	Right Angle SMA Plug	Shielded	50 Ohms	Male	Free Hanging (In-Line)	Copper	Male	TNC Plug Right Angle			RG-142	50 Ohms	Free Hanging (In-Line)	11 GHz	304.8 mm	12 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 90.25
		25	$ 84.07
		50	$ 77.89
		100	$ 72.60
		250	$ 68.18

Description

General part information

Q-3804X0 Series

Cable Assembly Coaxial SMA to TNC RG-142 9.843" (250.00mm)

Documents

Technical documentation and resources

No documents available
