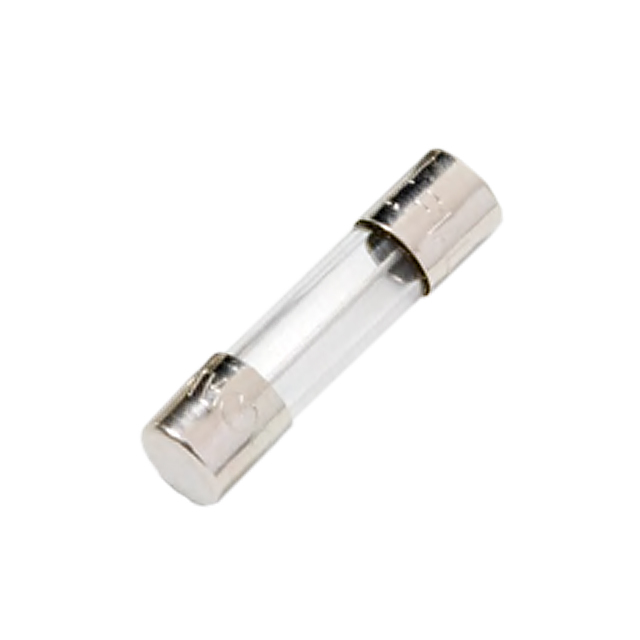

0235.600MXP

Active

Littelfuse/Commercial Vehicle Products

FUSE, CARTRIDGE, FAST ACTING, 600 MA, 250 V, 5MM X 20MM, 0.2" X 0.79", 235 SERIES

Search across all available documentation for this part.

Active

Littelfuse/Commercial Vehicle Products

FUSE, CARTRIDGE, FAST ACTING, 600 MA, 250 V, 5MM X 20MM, 0.2" X 0.79", 235 SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	0235.600MXP

Approval Agency	CSA, CE, KC, UL
Breaking Capacity @ Rated Voltage	35 A
Current Rating (Amps)	600 mA
DC Cold Resistance	0.3195 Ohms
Melting I²t	0.112
Mounting Type	Requires Holder
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case [x]	5 mm
Package / Case [y]	20 mm
Response Time	Fast Blow
Size / Dimension [diameter]	5.2 mm
Size / Dimension [diameter]	0.205 in
Size / Dimension [x]	0.787 in
Size / Dimension [x]	20 mm
Voltage Rating - AC	250 V

FUSE 5x20 F LBC 0.6A/250V (P)

Part	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case [y]	Package / Case [x]	Melting I²t	Breaking Capacity @ Rated Voltage	Approval Agency	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Mounting Type	Voltage Rating - AC	Current Rating (Amps)	Response Time	DC Cold Resistance	Size / Dimension [z]	Size / Dimension [z]
Littelfuse/Commercial Vehicle Products 0235.600MXP	-55 °C	125 °C	20 mm	5 mm	0.112	35 A	CE CSA KC UL	0.787 in	5.2 mm	20 mm	0.205 in	Requires Holder	250 V	600 mA	Fast Blow	0.3195 Ohms
Littelfuse/Commercial Vehicle Products 0235.600VXEP	-55 °C	125 °C	20 mm	5 mm	0.112	35 A	CE CSA K-Mark UL		5.8 mm		0.228 in	Through Hole	250 V	600 mA	Fast Blow	0.3195 Ohms	22.5 mm	0.886 "
