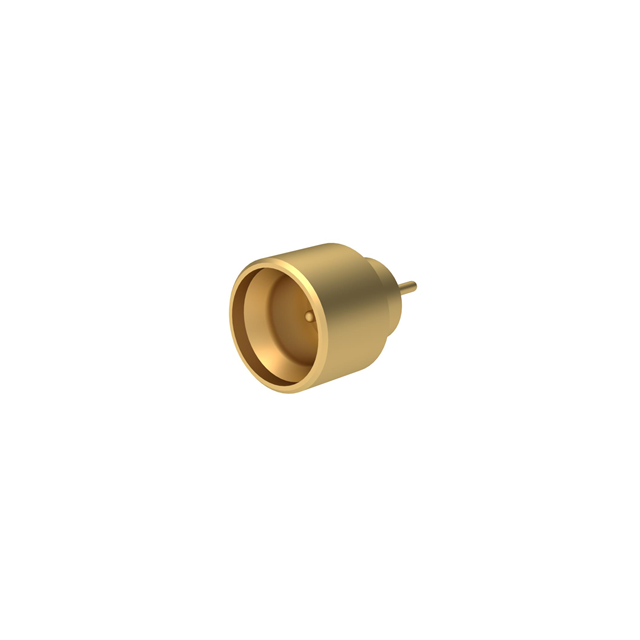

R201645700
ActiveRadiall USA, Inc.
SMPM / HERMETIC STRAIGHT MALE RE
Deep-Dive with AI
Search across all available documentation for this part.
R201645700
ActiveRadiall USA, Inc.
SMPM / HERMETIC STRAIGHT MALE RE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R201645700 |
|---|---|
| Body Finish | Gold |
| Center Contact Plating | Gold |
| Connector Style | SMPM |
| Connector Type | Male Pin, Jack |
| Contact Termination | Solder |
| Fastening Type | Snap-On |
| Features | Smooth Bore |
| Frequency - Max [Max] | 40 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 35.24 | |
Description
General part information
R20164 Series
SMPM Connector Jack, Male Pin 50 Ohms Through Hole Solder
